Ceesar: Single-layer PVC inflatable tent with captive air, L = 2.5 x W = 2.5 x H = 2.5 m

As part of the implementation of prevention campaigns and practices for road safety, the company  CEESAR , based in Nanterre, in the department of Hauts-de-Seine in the Île-de-France region, asked FlyPix to custom-make a captive air inflatable tent with dimensions L = 2.5 m x x 2.5 m x H = 2.5 m.

This inflatable captive air shelter is entirely made of single-skin 0.6 mm PVC, inflated with air using an electric pump.

We provide:

• Thales, OBG Lux, EDF, Chantiers Modernes, Colas Rail, Sefrim Environnement, Groupe Bollore, French Red Cross,  SAMU, SMUR, SDIS, Civil Protection, French Army, French Navy, Red Crescent, National Gendarmerie,  Sol Environnement, Fayat, Razel-Bec, Bouygues Bâtiment, Airbus, CNES, CNRS, Noé Jacquier, SNCF, Alstom, RATP, Sade, NJ Décobéton, 3 Descendeurs, Marti Group, Nouvetra, Flexi France, Technip, Andra, EADS, Nexter, Aéroport de Paris…

A general photograph taken in the production workshop of the custom-made tent manufactured for the company Ceesar. It’s a small inflatable shelter: L = 2.5 m x W = 2.5 m x H = 2.5 m, a captive air inflatable structure, entirely made of single-layer 0.6 mm PVC, and inflated with a 220V electric pump via a non-return valve. A large, wide gable door on the front is designed to be raised very quickly using a pulley and counterweight system. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

General concept of the inflatable shelter house: L = 2.5 x W = 2.5 x H = 2.5 m

House shape for this inflatable tent:

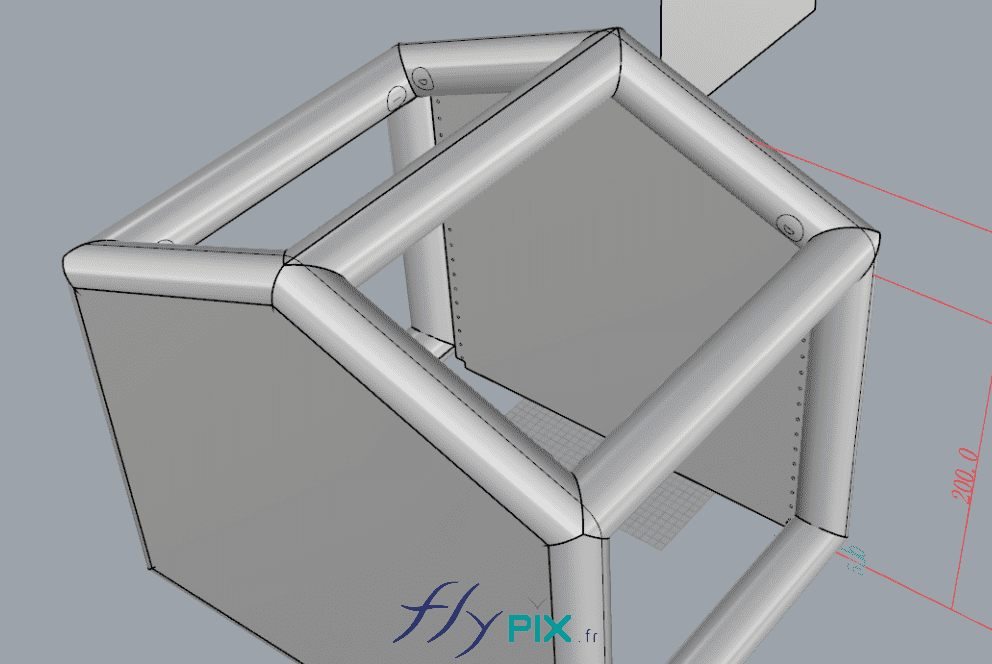

Final proof (BAT – bon à tirer) of the captive air tent recently produced for Ceesar , showing the shelter’s appearance and general configuration. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

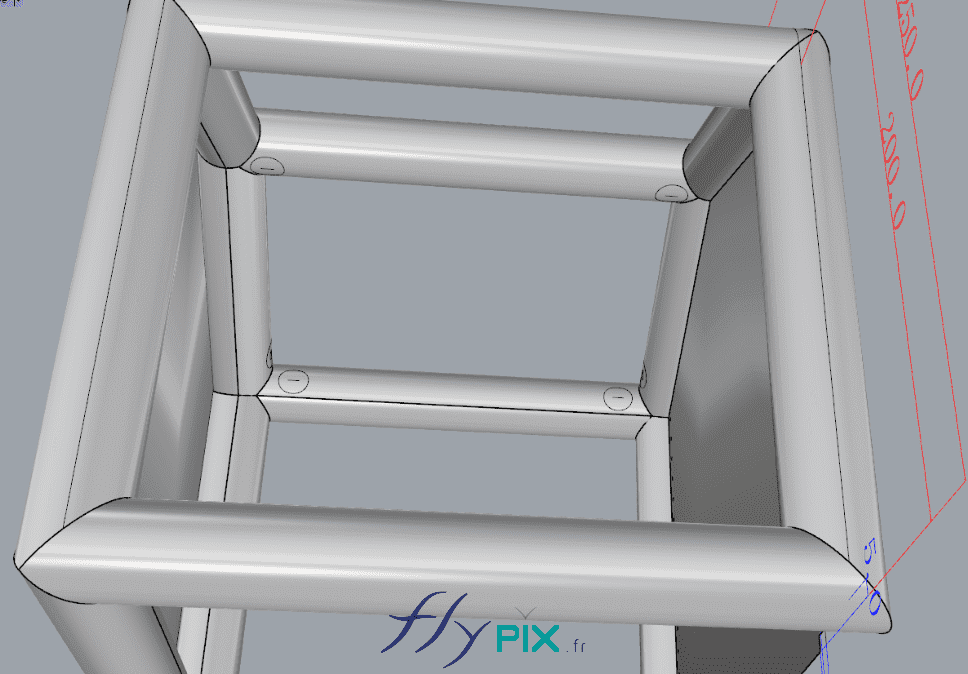

Final proof (BAT – bon à tirer) of the captive air tent recently produced for Ceesar , showing the shelter’s appearance and general configuration. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Purpose of the inflatable tent  :

• To conduct automotive braking and safety tests, and simulate accidents in outdoor environments,
• There will be a mannequin (a fake pedestrian) inside the tent, mounted on a rail.
• The door opens suddenly and the mannequin slides out along the rail.

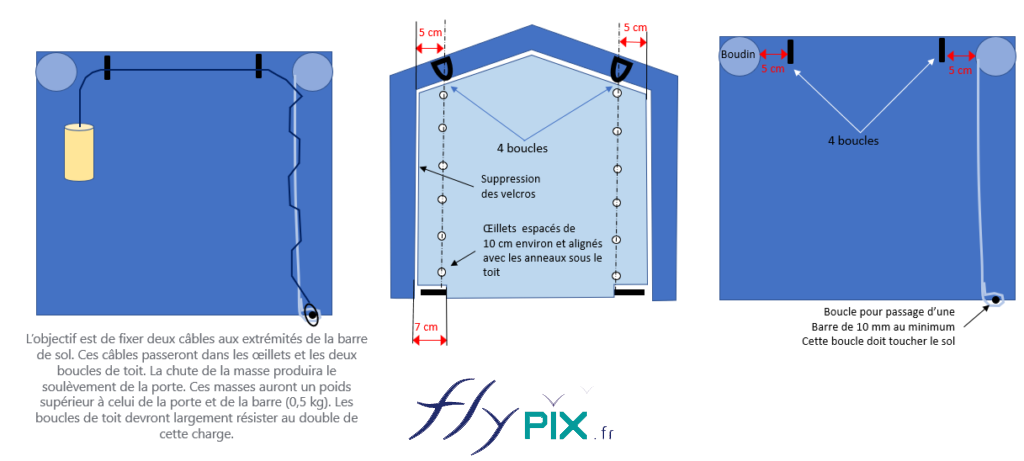

Inflatable tent for conducting automotive braking and safety tests, simulating accidents, in an outdoor environment. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

The result obtained from the tent once construction was complete:

Shaped like a house, this inflatable tent inflates and sets up very quickly thanks to a powerful electric pump; it can be deployed in just a few minutes. The material used, 0.6 mm PVC, similar in quality to the hulls of Zodiac boats, is very strong and robust for repeated, long-term use. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Single-layer PVC inflatable tent with captive air system, 0.6 mm thick, L = 2.5 x W = 2.5 x H = 2.5 m

Technical specifications  :

• 1 inflatable tent with captive air,
• Usable internal dimensions: L = 2.5 x W = 2.5 x H = 2.5 m,
• Tent shape: house,
• Materials: Shelter entirely made of 0.6 mm single-skin PVC, welded seams, solid WHITE color.
• A single, wide gable door, spanning the entire width, which can be installed very quickly to free up access.
• Velcro closures + Velcro flap to provide a smooth surface for opening the door without snagging.
• Travel straps,
• 1 electric pump, 220V
• Without marking or personalization,
• Non-return valve, pressure relief valves,
• External metal fixing rings and eyelets,
• Internal metal fixing rings and eyelets,
• Shunting codes: Lancelin marine pro,
• Storage bag,
• Repair kit,
• BAT in graphic design studio
• LNE France fire safety standard type M2,
• 1-year warranty + after-sales service + telephone support
• Made in France to measure by us in our workshops in Orléans.

Services & guarantees:

• Our experience and expertise, our responsiveness, our client references,
• Custom-made by us in our workshops in France.
• Monitoring of your projects and support from our technicians and engineers, before, during and after delivery,
• High-quality PVC materials, resistant, strong and durable,
• Certifications: LNE France fire safety standards type M2 (and not type M3, which is insufficient) for PVC (very high level of fire protection),
• Certifications: CE electrical standards, for turbines and electric pumps, pressure regulators,
• 1-year manufacturer’s warranty, after-sales service included.
• Telephone support,
• Maintenance and repair service in the workshop or on site.

---

---

Further detailed views of the BAT (bon à tirer – approved for printing) concept, validated by the company Ceesar  :

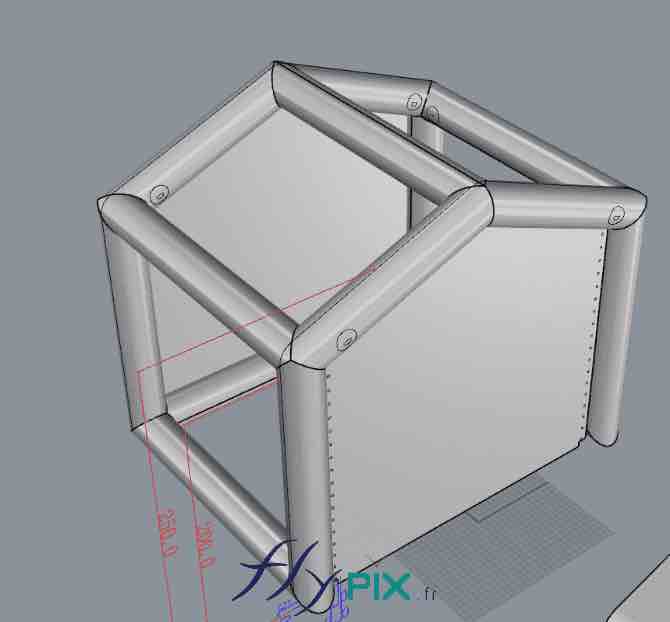

Proof (ready for printing) of the captive air tent recently produced for Ceesar, showing the shelter’s appearance and general configuration. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Details of the inflatable tent’s frame tubes, the shelter’s skeleton; the frame tubes are interconnected and airtight. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

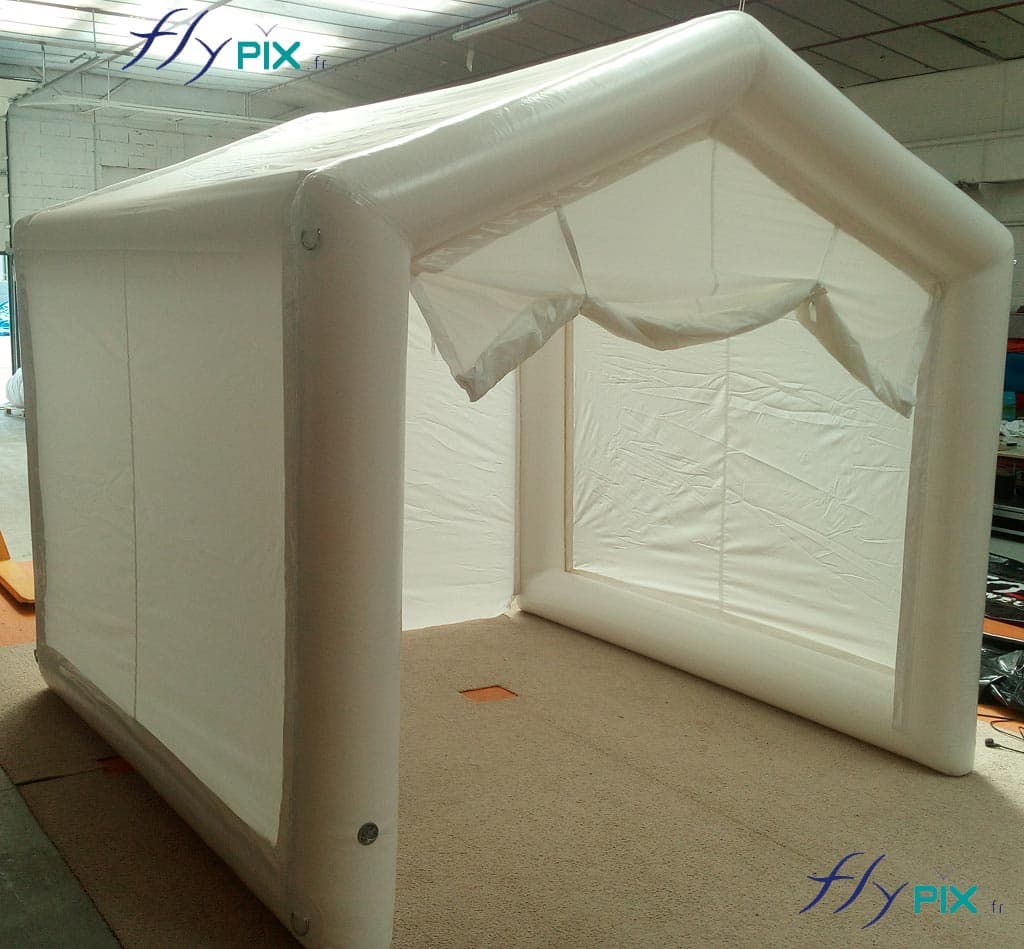

General view of the inflatable tent: the wide gable door at the front is open, the non-return inflation valve is at the bottom left, and on the upper part are metal attachment rings for guy lines, for use in outdoor environments. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

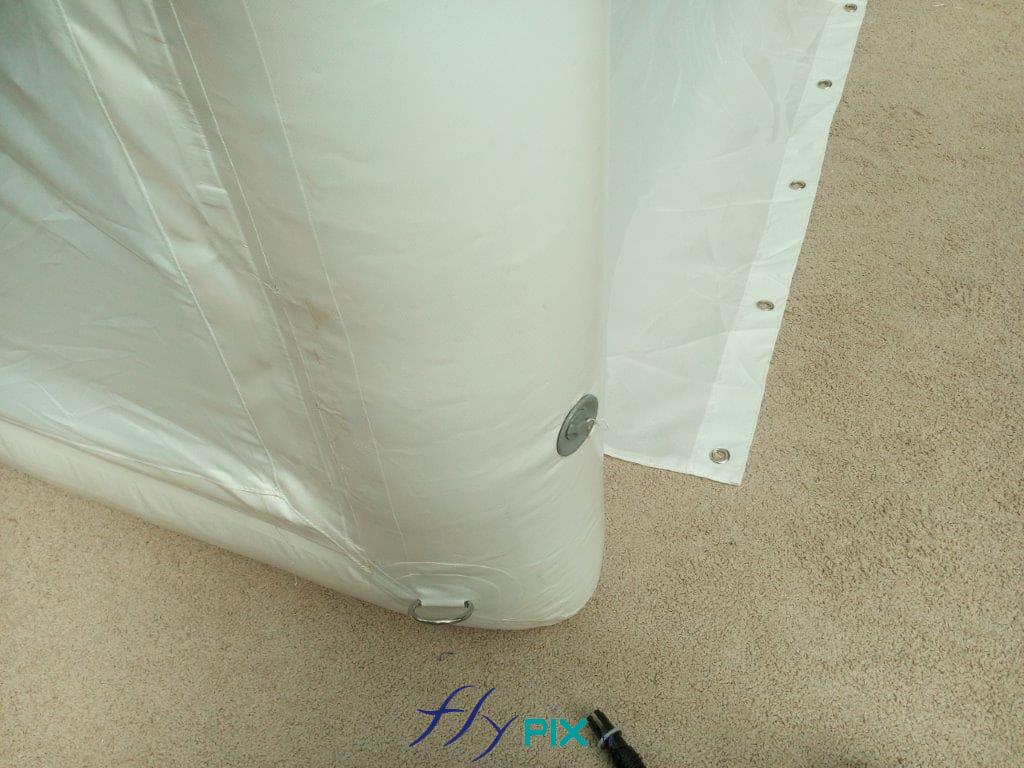

Detailed view of the non-return valve for inflating the tent with an electric pump, visible at the bottom left, at the base of the main frame tube. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Here is an example of the reversible electric pump we supply with the inflatable tent kit: in one direction, it injects and blows air into the inflatable structure; in the other direction, it removes air by drawing it outwards. This process allows you to completely and quickly deflate the inflatable shelter so you can easily fold it up neatly and store it in its storage bag. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

We manufacture custom-made products in France, according to the needs and specifications of our clients:

• Inflatable shelters,
• Inflatable cabins,
• Inflatable tents,
• Inflatable hangars,
• Inflatable playgrounds.

Types of construction or industrial sites:

• Masonry,
• Application of plaster or resins,
• Roads and highways,
• Floor coverings,
• Renovations and restorations,
• Earthworks,
• Demolitions,
• Soil remediation,
• Excavations,
• Painting, welding,
• Work on swimming pools, basins,
• Storage of equipment or materials.

We deliver  inflatable shelters and tents for construction and public works projects  in the following territories:

• Metropolitan France ,
• French Overseas Departments and Territories (DOM TOM) :  Martinique, Guadeloupe, Réunion, Mayotte, New Caledonia, French Guiana,…
• Europe : Luxembourg, Belgium, Switzerland, Monaco,…
• Francophone Africa :  Morocco, Tunisia, Algeria, Senegal, Ivory Coast, Madagascar,…
• Worldwide delivery available upon request.

Why don’t we offer  OXFORD fabric  for our shelters?

• We do not offer  inflatable tents  made of  Oxford canvas, as  the quality of this material is insufficient and unsuitable for the needs required on swimming pool construction sites.
• Under these working and construction conditions,  Oxford fabric is  too fragile and offers no resistance to abrasion and repeated use. That’s why our tents for pool installers are always made with 0.45 mm and 0.60 mm PVC casing.
• Too many problems caused by this  Oxford fabric design  (tears, abrasions, etc.). Many repairs and returns for after-sales service.
