First aid medical inflatable tent for the BDA in Belgium, air captive, easy mobile unit

We manufactured a first aid medical tent for the BDA in Belgium, a shelter made to measure by us thanks to our engineers and technicians.

This shelter is air-locked, meaning it is inflated with an electric pump and a pressure regulator; once folded in its storage bag, it takes up very little space in a rescue vehicle.

We provide:

• 3 Descenders, Paris Airport, Airbus, Alstom, Andra, French Army, Bouygues Bâtiment, Celeste Airships, Chantiers Modernes, CNES, CNRS, Colas, Colas Rail, French Red Cross, Red Crescent, EADS, EDF, Eurovia, Fayat, Flexi France, National Gendarmerie, Bolloré Group, IrvinGQ France SAS, French Navy, Marti Group, Ministry of Defence, Ministry of the Armed Forces, NJ Décobéton, Nexter, Noé Jacquier, Nouvetra, OGB Lux, Civil Protection, RATP, Razel-Bec, Sade, SAMU, SDIS, Sefrim Environnement, SMUR, SNCF, Sol Environnement, Technip, Thales, Valgo, Vinci, Wabtec…

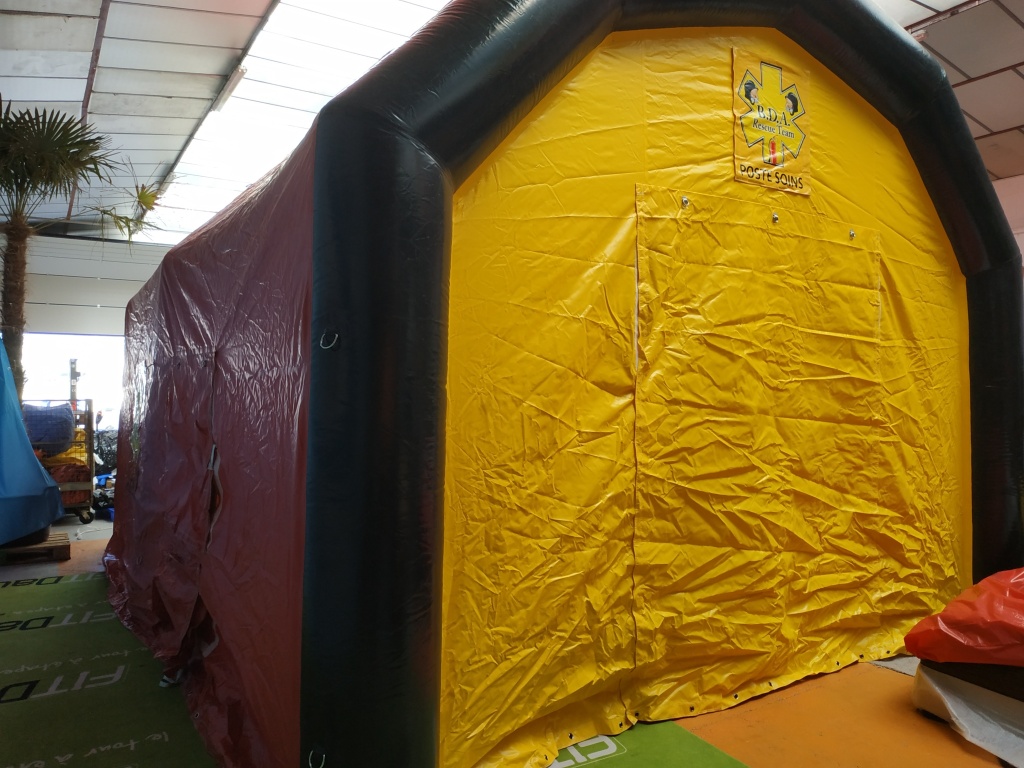

The inflatable tubes, inflated with air using a pump and pressure regulator, are equipped with rings and eyelets for Velcro fastening, and Lancelin marine-grade rope guy lines. The door closes with wide Velcro strips. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Inflatable first aid tent, advanced medical post. Shape: 5 cut sides.

Features:

• Inflatable PMA tent,
• Airtight structure inflated with air using an electric pump.
• Usable internal dimensions: 6.5 x 4.5 m,
• Roof and wall envelope: 0.6 mm PVC, single skin,
• Envelope color: see Pantone color chart for colors.
• Framing: 0.6 mm PVC frame tubes, single skin,
• 3 removable Velcro markings: Logo or text printing in color on a white background. Attaches with Velcro strips.
• Windows and doors: 1 wide gable door with Velcro closure and window. Location and dimensions to be determined.
• Metal fixing rings for INDOOR AND OUTDOOR use + Lancelin guy rope kit,
• Fire safety standards (type M2), CE standards,
• Overpressure valve, non-return valve,
• Hot/cold air sleeves (air conditioning not included),
• WITHOUT a tarpaulin on the ground,
• Good to print,
• Repair kit, after-sales service
• 1-year manufacturer’s warranty – After-sales service,
• Custom-made in France by us.

PMA inflatable tent, sealed airtight, L = 6.5 m x l = 4.5 m, 0.6mm PVC

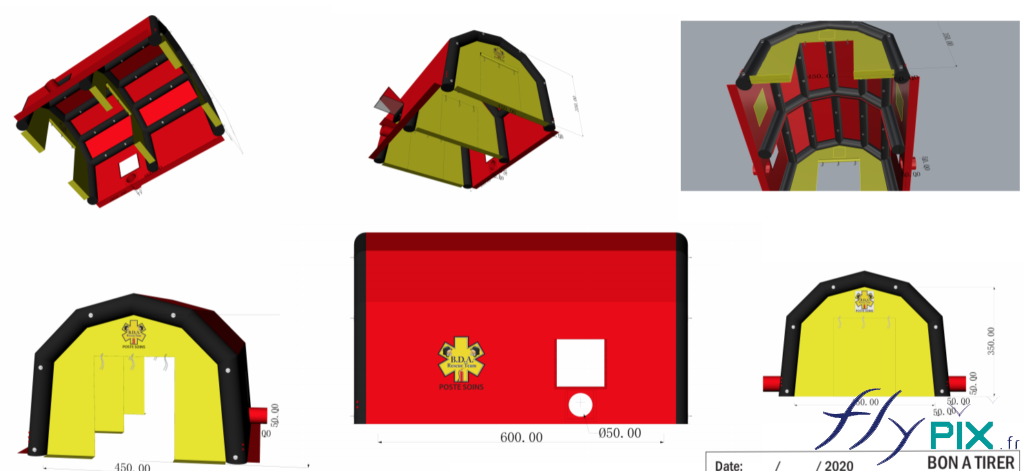

Here is the final proof (BAT – Bon à tirer), approved by the client for the PMA tent, before its manufacture, with a 3D view. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

---

---

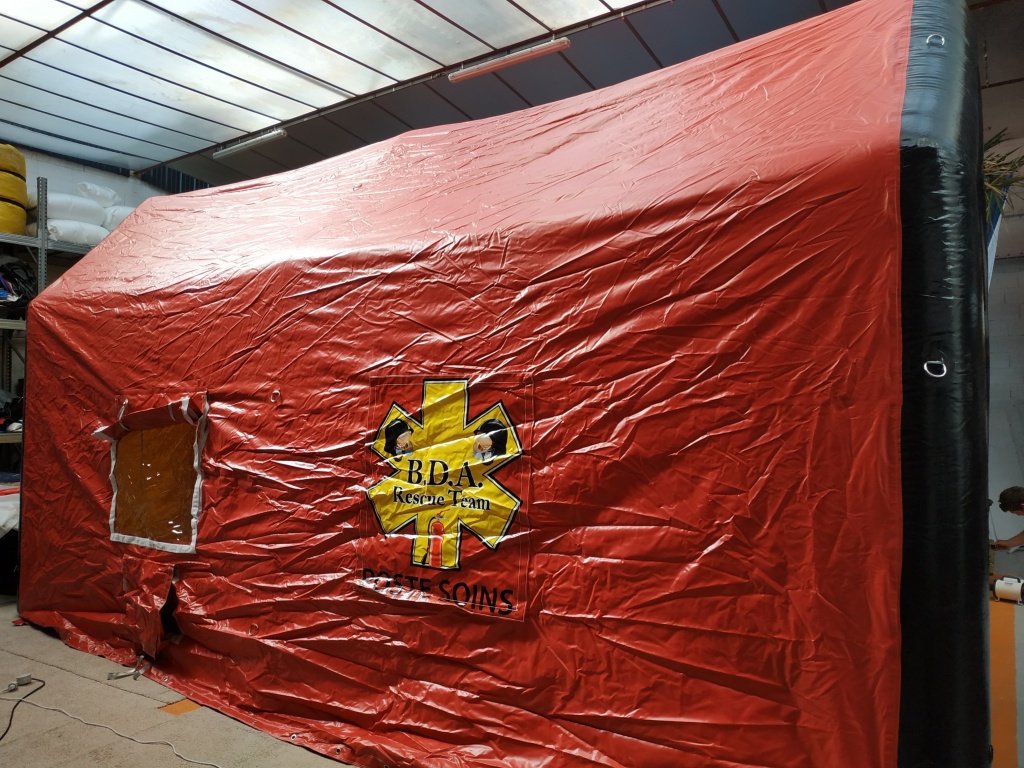

On the side wall of the first aid tent, on each side, we placed a window with a shutter, Velcro fasteners, and also removable marking banners with the company logo. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

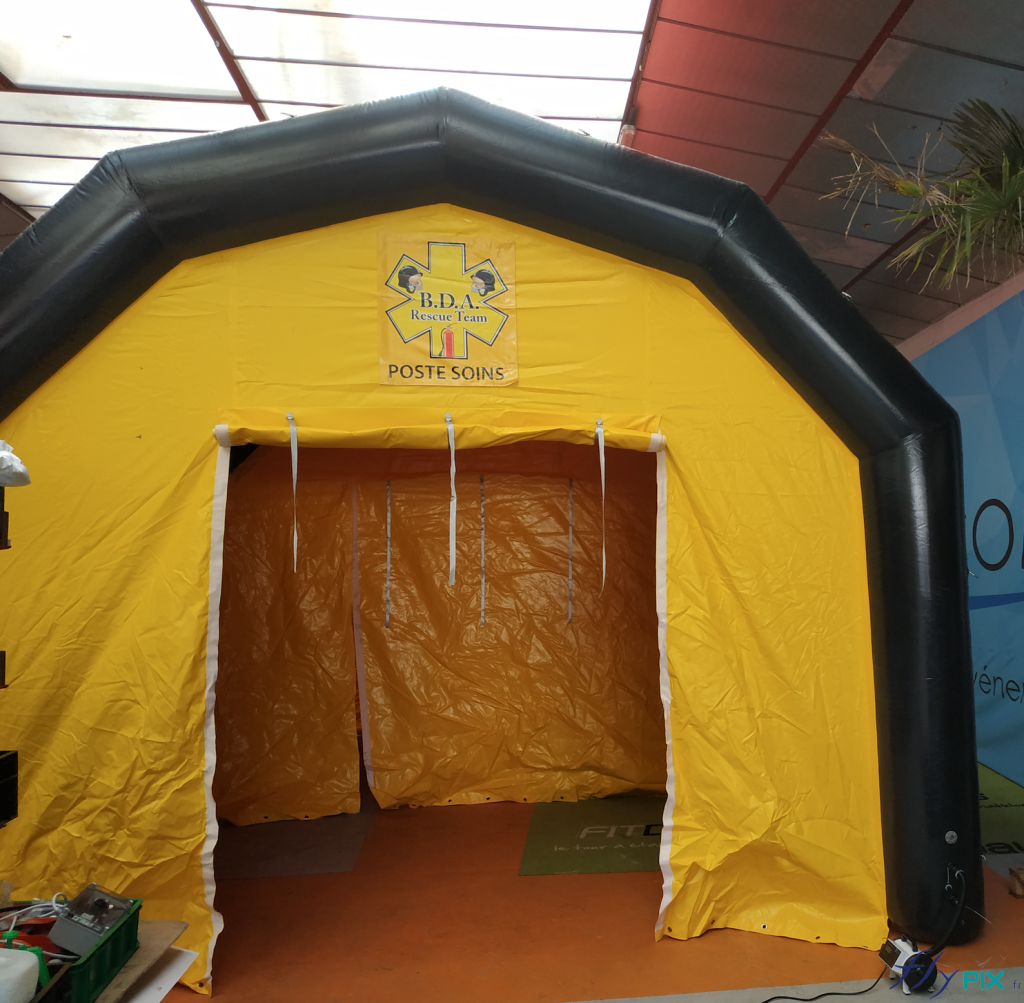

A front view of the PMA tent: wide gable door with Velcro fasteners, printed marking banner, Velcro fasteners above the door, black air-trapped frame tubes, inflated with an electric pump. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Below : the PMA tent inflation system with pump and pressure regulator, which modulates the air inside the frame tubes. There are also overpressure valves that will ”  pssh ” if there is excess air in the frame tubes.
