Sarlat Hospital Center: inflatable tent, advanced medical post with captive air

We collaborated with the Sarlat Hospital Centre on the custom manufacturing of an inflatable PMA (advanced medical post) tent, an inflatable first aid shelter for emergencies.

It is a sealed, air-trapped inflatable structure, that is to say, inflated with an electric pump.

This is an inflatable medical shelter made entirely of single-skin 0.6 mm PVC, in white color.

We provide:

• 3 Descenders, Paris Airport, Airbus, Alstom, Andra, French Army, Bouygues Bâtiment,  Celeste  Airships, Chantiers Modernes, CNES, CNRS, Colas, Colas Rail, French Red Cross, Red Crescent, EADS, EDF, Eurovia, Fayat, Flexi France, National Gendarmerie,  Bolloré Group ,  IrvinGQ  France SAS, French Navy, Marti Group, Ministry of Defence, Ministry of the Armed Forces, NJ Décobéton, Nexter, Noé Jacquier, Nouvetra, OGB Lux, Civil Protection, RATP, Razel-Bec, Sade, SAMU, SDIS,  Sefrim  Environnement, SMUR, SNCF, Sol Environnement, Technip, Thales, Valgo, Vinci, Wabtec…

Interior view of the PMA tent. Main door and side door, wide gable end with Velcro closures. Washable PVC groundsheet welded to the tent. Thick, interconnected frame tubes for excellent structural strength of the entire inflatable, air-filled structure. All-white outer shell. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Our strengths:

• Made in France, custom-made, by us in France.
• our advice,
• quality of execution and finishing,
• our expertise,
• Manufacturer’s warranty + after-sales service
• After-sales service and services provided.

We supply PMA tents  :

• The French Red Cross, the Belgian Red Cross, the Moroccan Red Crescent, the Niger Civil Protection, the French Navy, the Algerian Red Crescent, the UMP, SDIS, SMUR, EHPAD…

It should be noted that the PMA tent is also:

• a high-quality, reusable and robust product,
• It features a single-skin PVC casing, 0.6 mm thick, which is very resistant.
• It comes with a manufacturer’s warranty and after-sales service.
• It features a washable PVC ground sheet for good hygiene.
• and also LNE France M2 fire safety standards, for PVC envelopes.

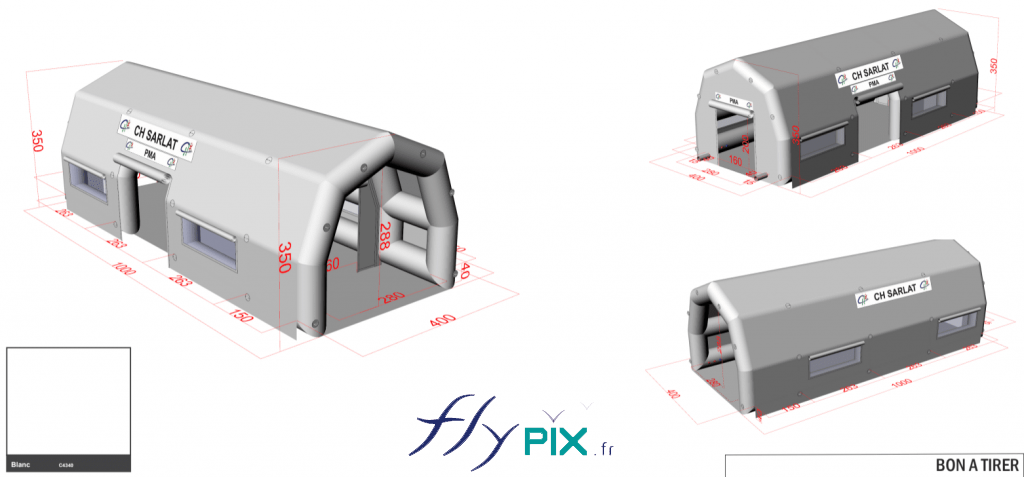

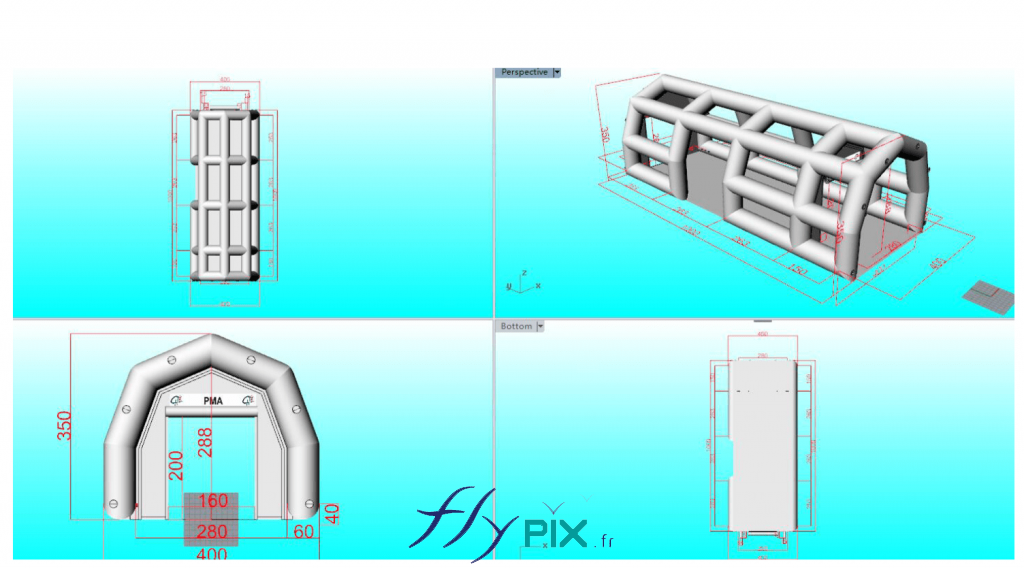

Below: 3D view and final proof model of the Advanced Medical Post (PMA) tent commissioned by the Sarlat Hospital. The usable dimensions were validated and specified directly by the client based on their needs and specifications. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

Medical tent L = 10 m x W = 4 m  +  1 external canopy L = 1.5 m

Features :

• Qty  1 Medical tent L = 10 m x W = 4 m  (usable internal dimensions) +  1 external canopy L = 1.5 m (for the main entrance door),
• Usable enclosed interior space: 40 m2, protected from the elements.
• Shape: Beveled edges,
• Usable interior height: 2.9 m
• Groundsheet  40 cm  all around the tent (WITHOUT THE DOORS),
• Captive air system: 1 pump + 1 pressure regulator , non-return valve, pressure relief valves.
• Materials:  entirely made of 0.6 mm single-skin PVC, welded seams, entirely solid  WHITE color
• Structure tubes:  0.60 m diameter, airtight, sealed, 0.6 mm PVC
•  Washable PVC groundsheet , welded to the tent, WHITE colour
• 1 external canopy L = 1.5 m  (side of main entrance door),
• Qty 2 wide gable doors  (1 entrance door) + 1 exit door) wide Velcro closures, dimensions L = 2.60 m x H = 2 m,  WITHOUT MUDGUARD , plain WHITE color, without windows,
• Qty 1 wide gable side door, WITHOUT DAMPER, centered on the interior length, without windows, dimensions L = 2m x H = 2.15m, plain WHITE color,  which must be on the left side when facing the main entrance (canopy), allowing access to the mortuary corridor which is used in the event of a white plan in an infectious and/or epidemic context,
• Quantity: 4 transparent side windows (2 on each side) , with retractable shutters, Velcro closures, without mosquito nets.
• External metal fixing rings and eyelets  for the stays,
• Internal metal fixing rings and eyelets , distributed on the frame tubes for suspension,
• Qty 2 Air sleeves and electrical cable/conduit grommets , 10 cm diameter, placed on the  face of the large secondary exit door , the door between the two.
• Lancelin professional marine rope shroud kit
• Quantity 6 Water -filled ballast bags
• Storage bag
• Repair kit.

Services & Guarantees

• Our experience and expertise, our responsiveness, our client references,
• Custom-made by us in our workshops in France.
• Monitoring of your projects and support from our technicians and engineers, before, during and after delivery,
• High-quality PVC materials, resistant, strong and durable,
• Certifications: LNE France fire safety standards type M2 (and not type M3, which is insufficient) for PVC (very high level of fire protection),
• Certifications: CE electrical standards, for turbines and electric pumps, pressure regulators,
• 1-year manufacturer’s warranty, after-sales service included.
• Telephone support,
• Maintenance and repair service in the workshop or on site.

Tent disinfection:

• You can use conventional cleaning products, based on soaps, alcohol, or acetone.
• Disinfectant aerosol sprays : we recommend WYRITOL bactericidal and antiviral disinfectant sprays   (currently used for disinfecting our first aid tents and PMA tents, notably by the  French Red Cross  and  Civil Protection ). You must verify their antiviral and antibacterial properties.
• Chlorinated products will tend to yellow  transparent PVC or TPU (no chlorine or bleach).

---

---

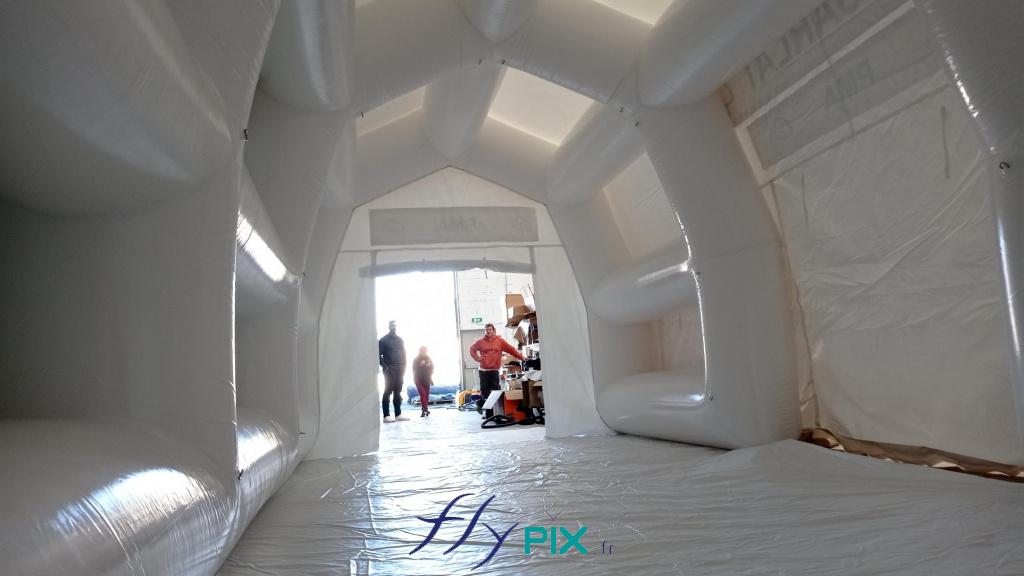

Another photo taken from inside the inflatable medical tent. Note the internal metal rings and eyelets distributed along the frame tubes, allowing for the suspension of lightweight and useful first aid equipment for patients, injured persons, or victims. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

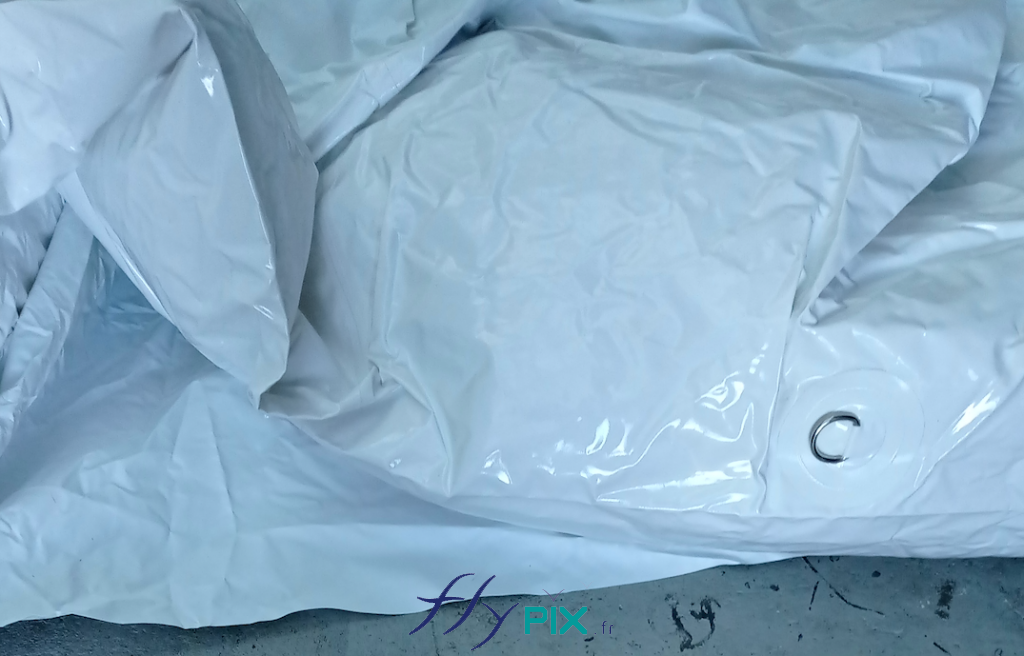

The 0.6 mm single-layer PVC cover is very strong and robust. It is certified to LNE France fire-retardant standard type M2. Bottom right: an example of a reinforced metal fixing eyelet. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

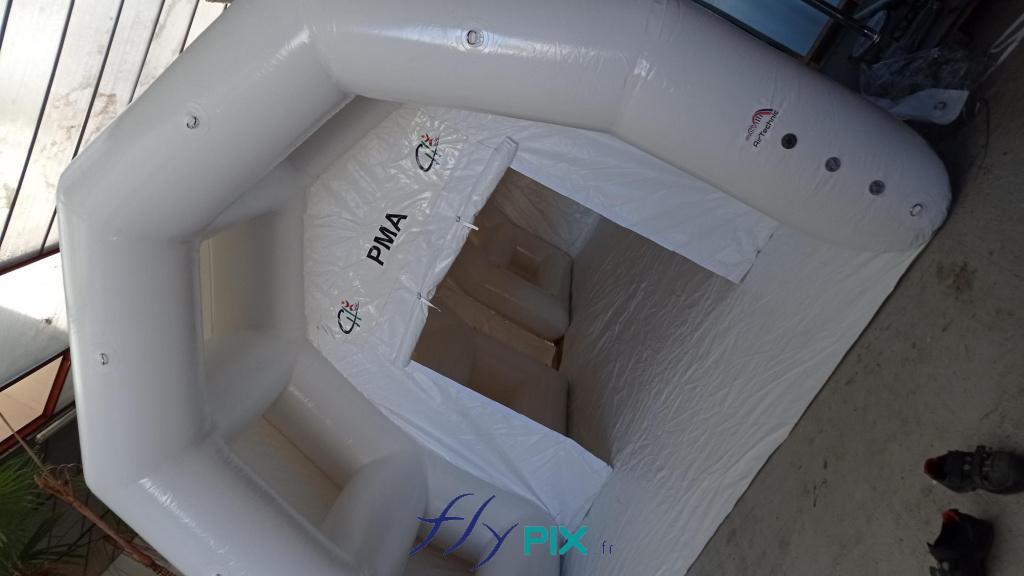

A view of the front (gable end) of the PMA medical or military tent: washable PVC groundsheet, access canopy with clean PVC flap, a wide gable end door, banner with custom printed markings attached with Velcro. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

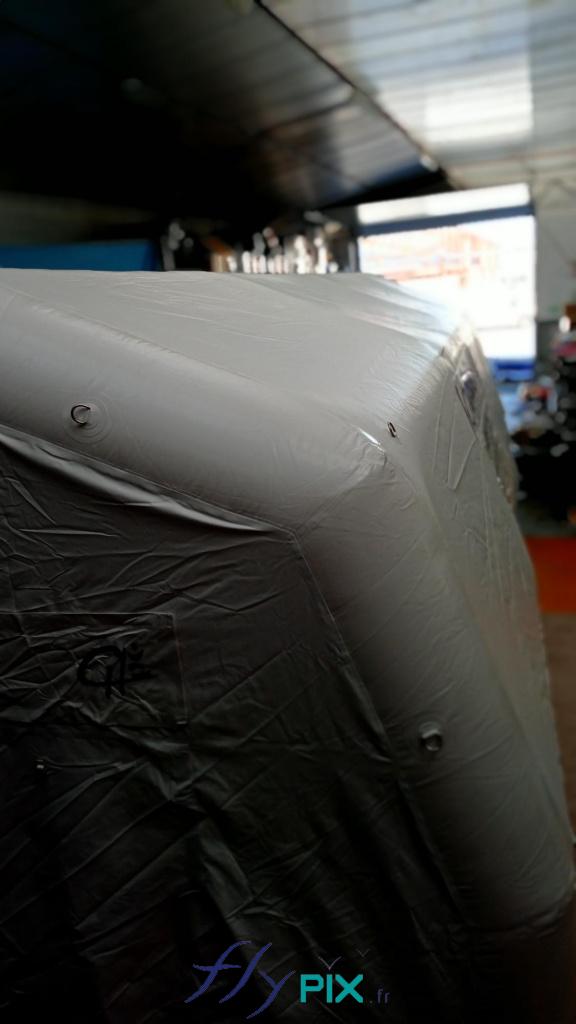

Detailed view of a 0.6 mm PVC airtight frame tube: external metal rings and eyelets for guy lines. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

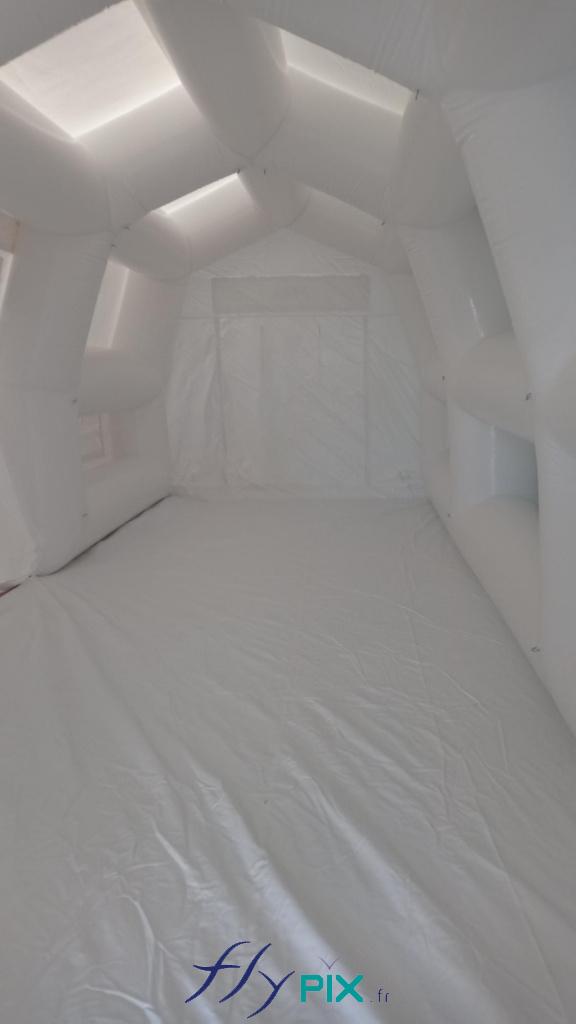

A photograph taken inside the fully enclosed PMA tent: washable PVC groundsheet. The space is completely clean and washable, offering perfect hygiene… – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.
