Thales: large military inflatable shed, U-inversed, double-skinned padded PVC shell, captive air, pump, pressure regulator system

For the company Thales , we designed and manufactured a large military inflatable tent, airtight, in the shape of an inverted U, entirely made of double-skinned, padded 0.6 mm PVC.

This army air-inflated shelter, with an electric pump and a pressure regulator, will be deployed for several months in an outdoor environment, with the aim of carrying out specific projects.

We provide:

• Thales, OBG Lux, EDF, Chantiers Modernes, Colas Rail, Sefrim Environnement, Groupe Bollore, French Red Cross,  SAMU, SMUR, SDIS, Civil Protection, French Army, French Navy, Red Crescent, National Gendarmerie,  Sol Environnement, Fayat, Razel-Bec, Bouygues Bâtiment, Airbus, CNES, CNRS, Noé Jacquier, SNCF, Alstom, RATP, Sade, NJ Décobéton, 3 Descendeurs, Marti Group, Nouvetra, Flexi France, Technip, Andra, EADS, Nexter, Aéroport de Paris…

• VIDEO : Tour of the exterior and interior of the inflatable construction tent, captive air, in 0.6 mm double-skinned padded PVC envelope, custom-made for the company THALES . Watch the video on YouTube here: https://youtu.be/QV0o6HLB7wk
• PLAYLIST : see all the videos of the THALES inflatable construction tent here.

Our strengths:

• Made in France, custom-made, by us in France.
• our advice,
• quality of execution and finishing,
• our expertise,
• Manufacturer’s warranty + after-sales service
• After-sales service and services provided.

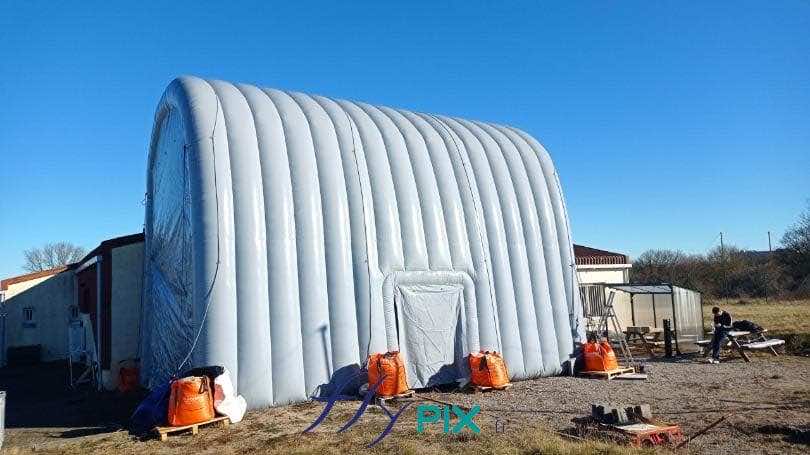

Here is the final result: the inflatable hangar deployed and installed. – All rights reserved, copyrights FLYPIX.

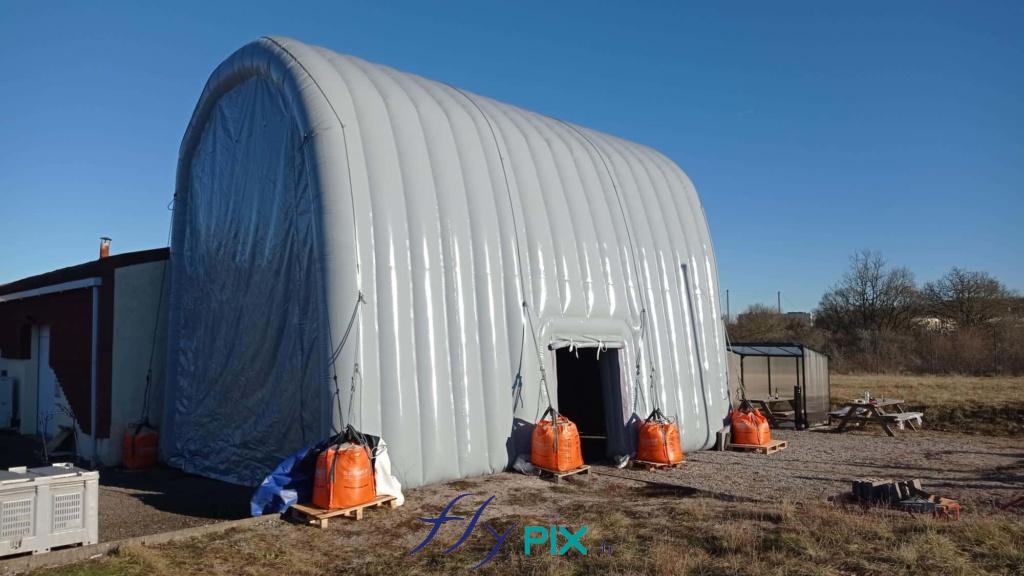

The inflatable hangar is arranged in an inverted U-shape, secured by guy lines to sand-filled ballast bags. The side access door is visible. The 0.6 mm double-skinned, padded PVC walls are very robust and strong. – All rights reserved, copyright FLYPIX.

We supply inflatable tents to : Airbus, CNES, EADS, RATP, Bouygues, Colas Rail, Fayat, Alstom, Noé Jacquier, SNCF, the French Red Cross, the Belgian Red Cross, the Civil Protection of Niger, the French Navy, the UMP, SDIS, SMUR, nursing homes…

Services & Guarantees

• Our experience and expertise, our responsiveness, our client references,
• Custom-made by us in our workshops in France.
• Monitoring of your projects and support from our technicians and engineers, before, during and after delivery,
• High-quality PVC materials, resistant, strong and durable,
• Certifications; LNE France fire safety standards type M2 (and not type M3, which is insufficient) for PVC (very high level of fire protection),
• Certifications: CE electrical standards, for turbines and electric pumps, pressure regulators,
• 1-year manufacturer’s warranty, after-sales service included.
• Telephone support,
• Maintenance and repair service in the workshop or on site.

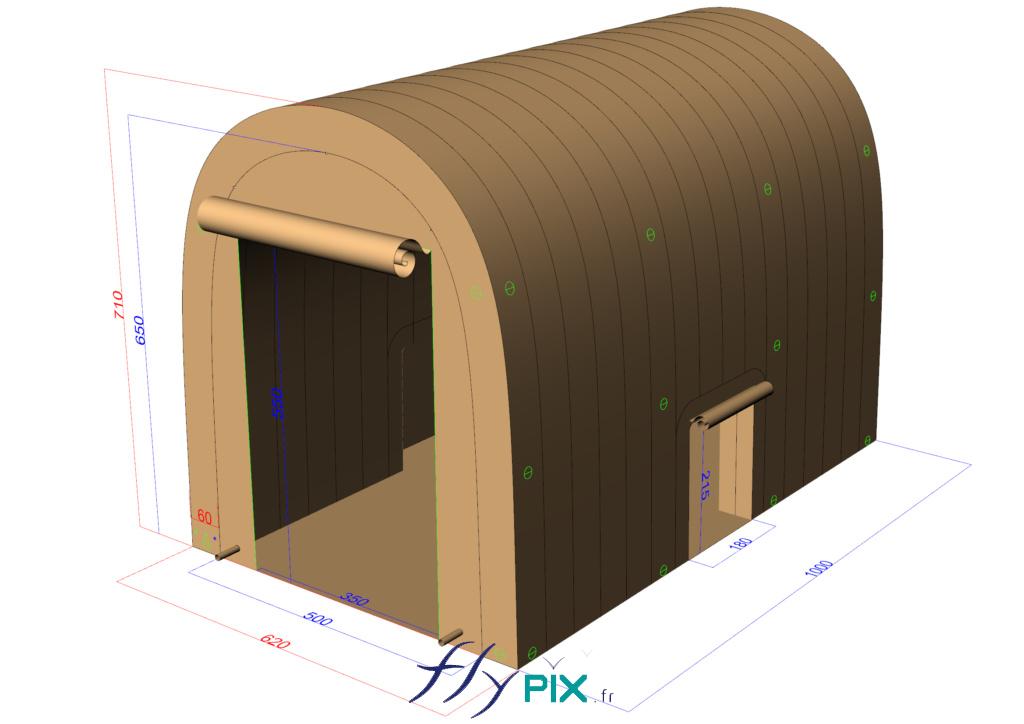

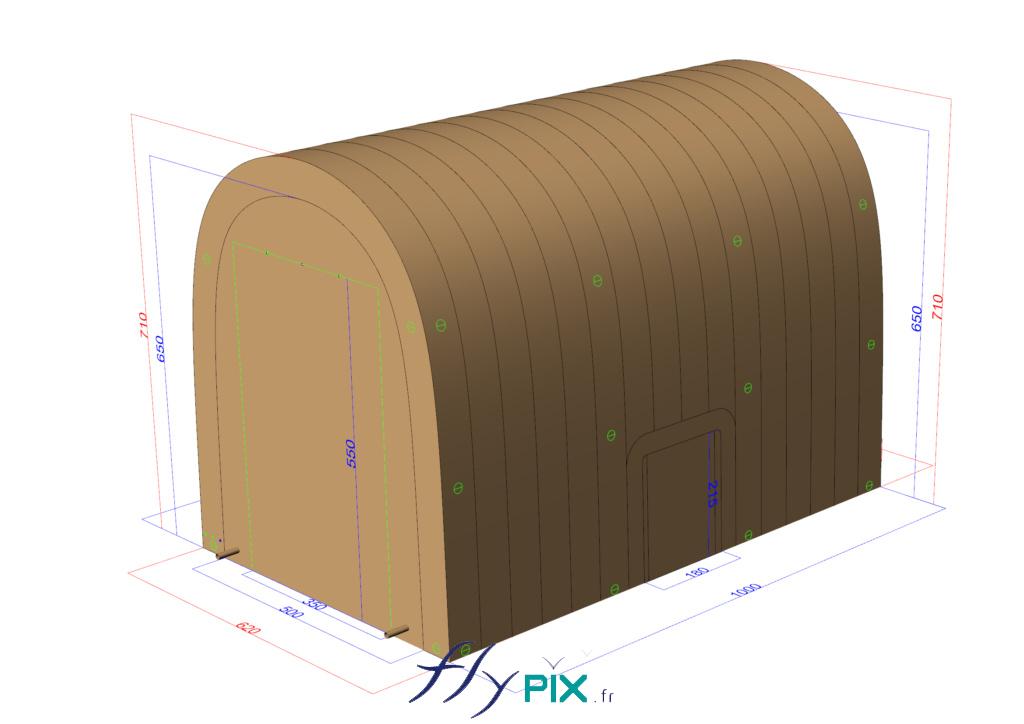

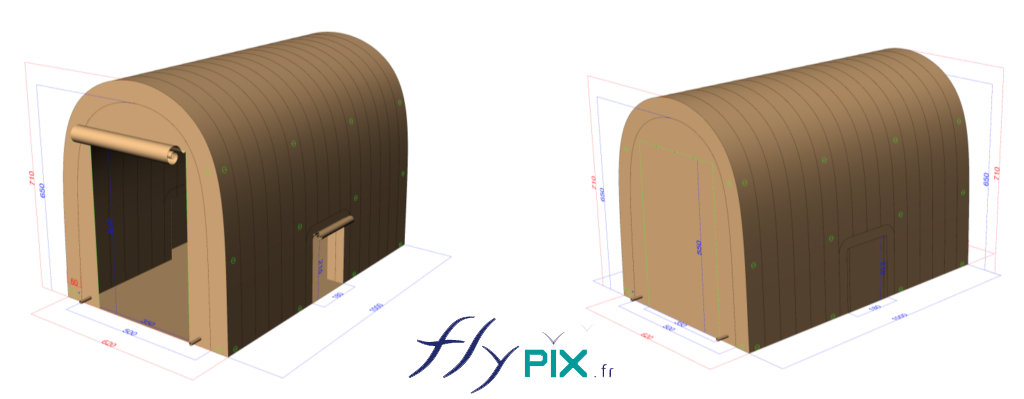

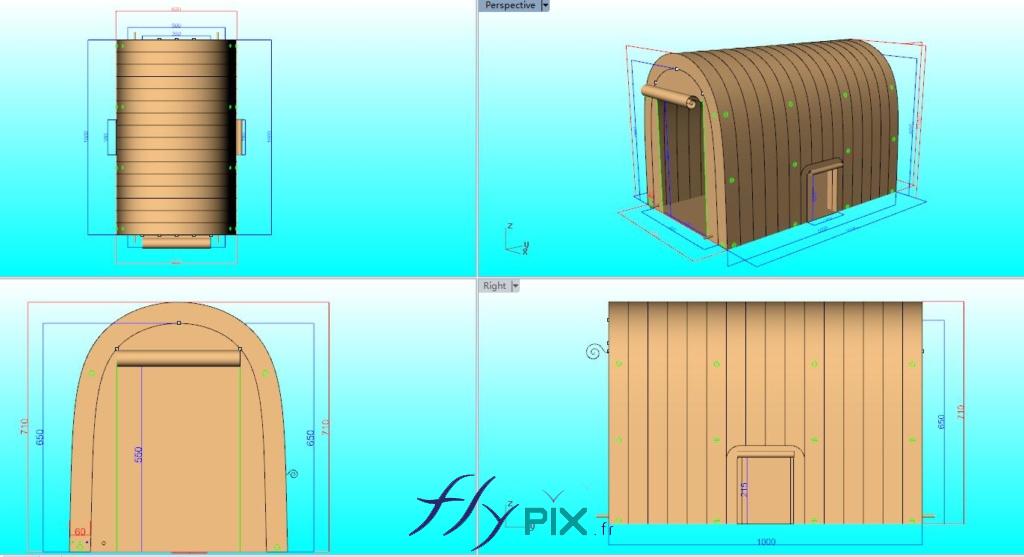

Below: 3D model and final proof of the inverted U-shaped construction tent, approved by the client Thales . The air-trapped shelter, inflated with a 220V electric pump, is 6.5m high, 6m wide, and 10m long. It features two large gable doors and two side service access doors.

1 inflatable tent, L = 10 m x W = 5 m x H = 6.5 m, sealed air, 0.6 mm double-walled PVC, inverted U-shaped

Specifications and prerequisites:

• Need to bring equipment measuring 5.5 m high x 3 m wide x 7 m long inside the tent,
• A shelter with dimensions L = 10 m x W = 5 m x H = 6.5 m, with 2 side accesses L = 1.8 m x H = 2.15 m, overall dimensions including a margin on the height of the equipment being protected,
• 2 main doors, H = 5.5 m x W = 3.5 m
• No treated atmosphere,
• Suitable for outdoor use for 2 to 6 months.
• Beige or khaki color.

Technical specifications:

• Inflatable industrial construction site tent, for use in outdoor environments.
• Shape: cut edges or inverted U,
• Type: Captive air inflatable structure, inflated with an electric pump.
• Materials: shelter entirely made of 0.6 mm double-skinned PVC, welded seams,
• Non-return valve, pressure relief valves,
• Structural insulation strips: 0.6 mm single-skin PVC envelope, airtight, solid Pantone color,
• Walls and roofs: 0.6 mm double-skin PVC envelope, solid Pantone color,
• To cover a minimum usable volume of: H = 5.5 m x W = 3 m x L = 7 m,
• Useful internal dimensions of the tent: L = 10 mxl = 5 mx H = 6.5 m,
• 2 side service doors: W = 1.8 m x H = 2.15 m, wide gables, wide Velcro fastenings,
• 2 main doors: W = 3.5 m x H = 5.5 m, wide gables, wide Velcro fasteners,
• Air sleeve: 10 cm diameter, location and position to be defined.
• Cable and electrical conduit sleeve, location and position to be defined.
• External metal fixing rings and eyelets,
• Shrouds: Lancelin professional marine ropes,
• Storage bag
• Repair kit,
• Without markings (optional), weights not supplied (optional),
• Without windows or any natural light,
• LNE France fire safety standard type M2,
• BAT in graphic design studio
• 1-year manufacturer’s warranty + after-sales service + telephone support.
• Made to measure in France by us in our workshops in Orléans, France.
• Please ensure that a 220V power supply is available on site.

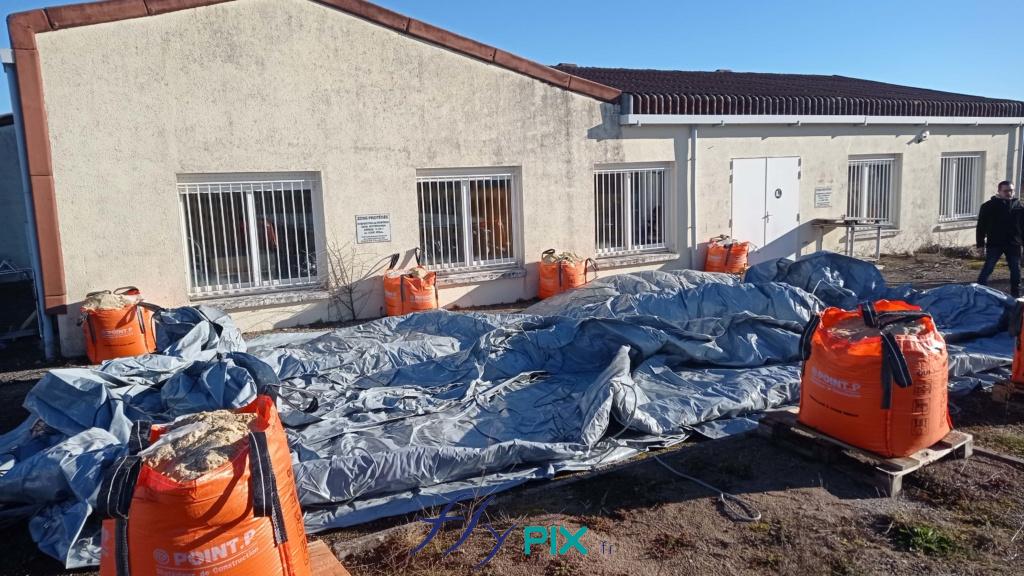

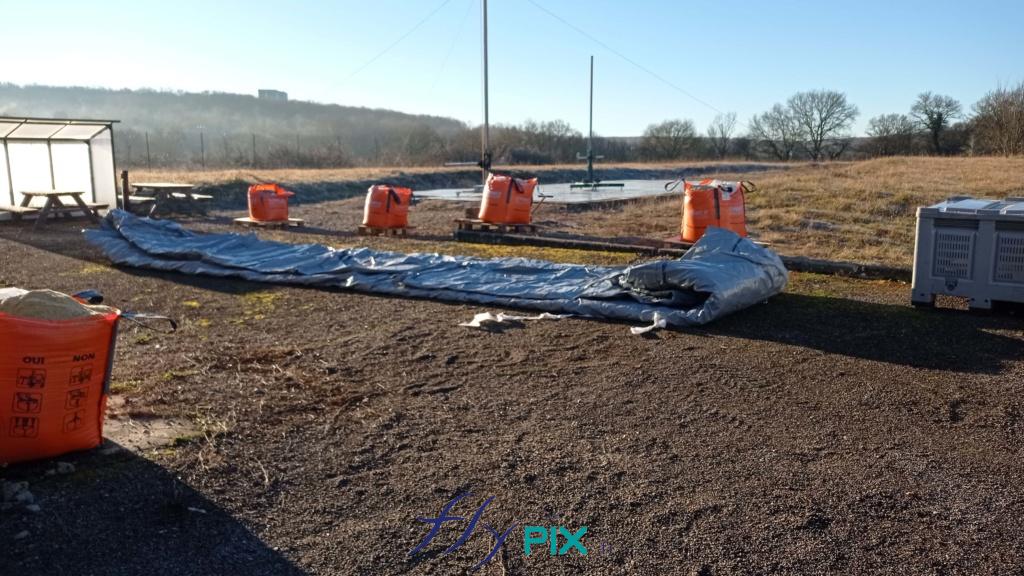

Installation, assembly, setup and on-site training provided by our team of technicians:

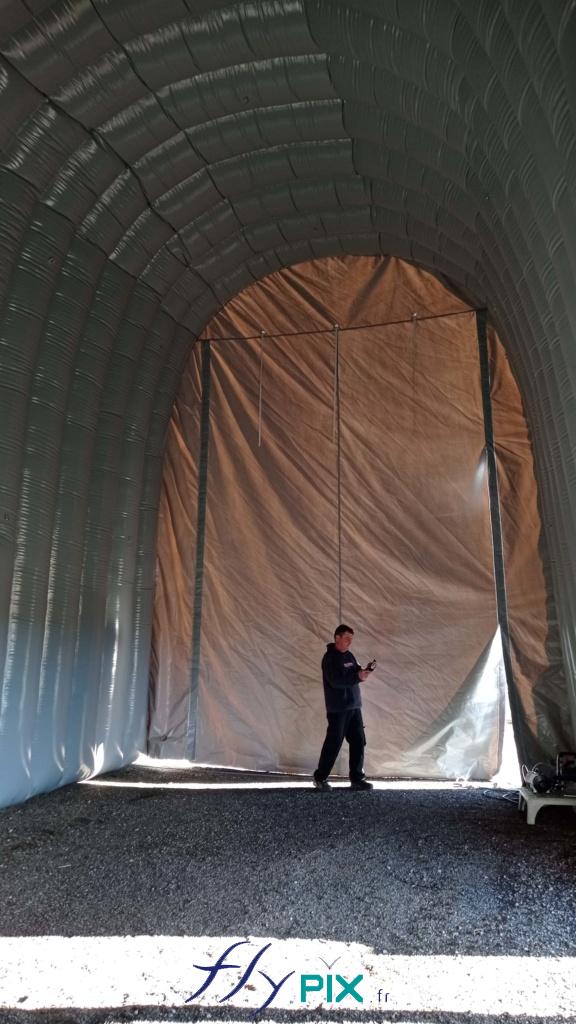

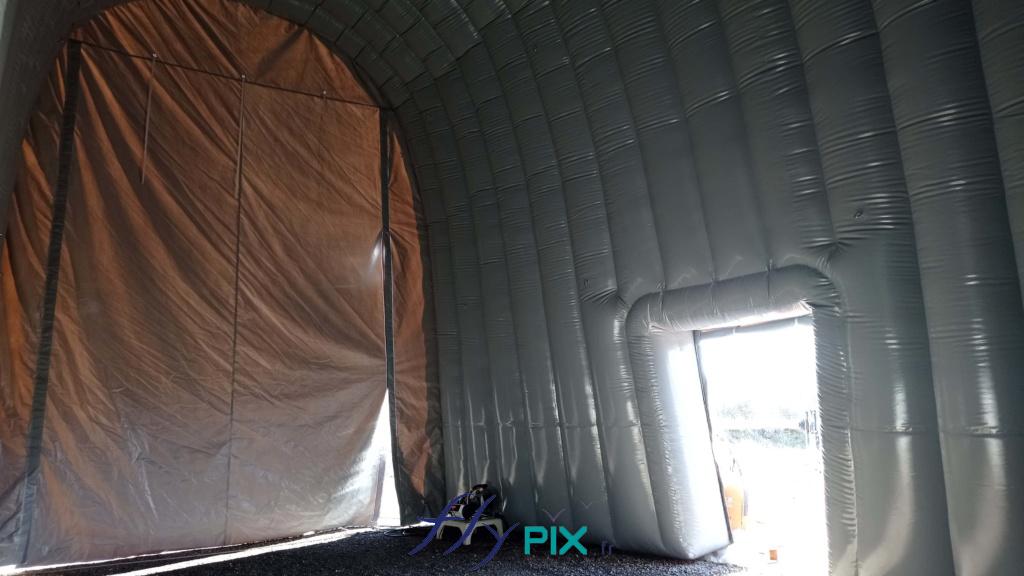

A large and spacious interior: versatility for future projects for Thales

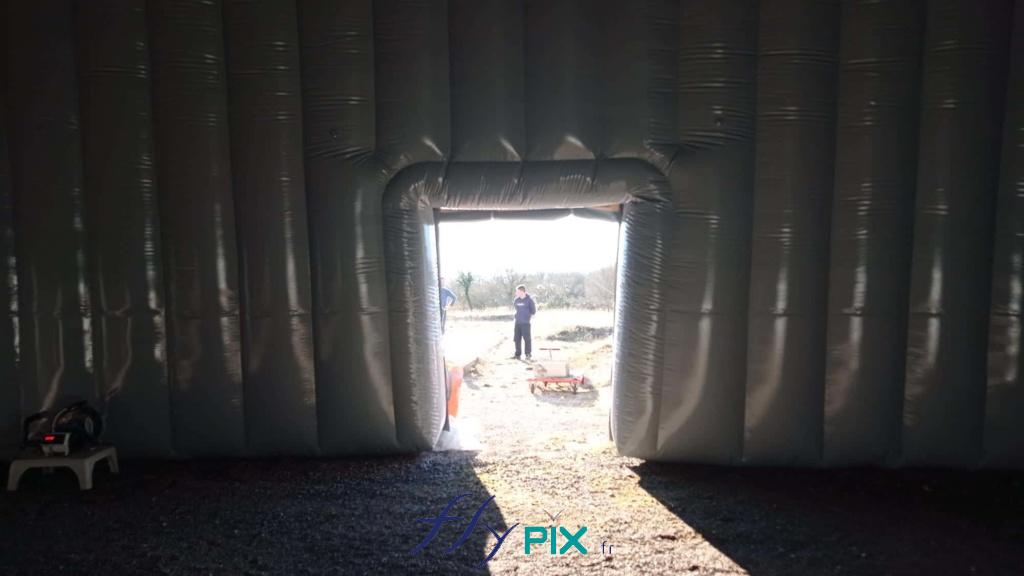

A photograph taken from inside the inflatable tent, aligned with the side service door. The usable interior volume is very large for versatile uses. – All rights reserved, copyright FLYPIX.

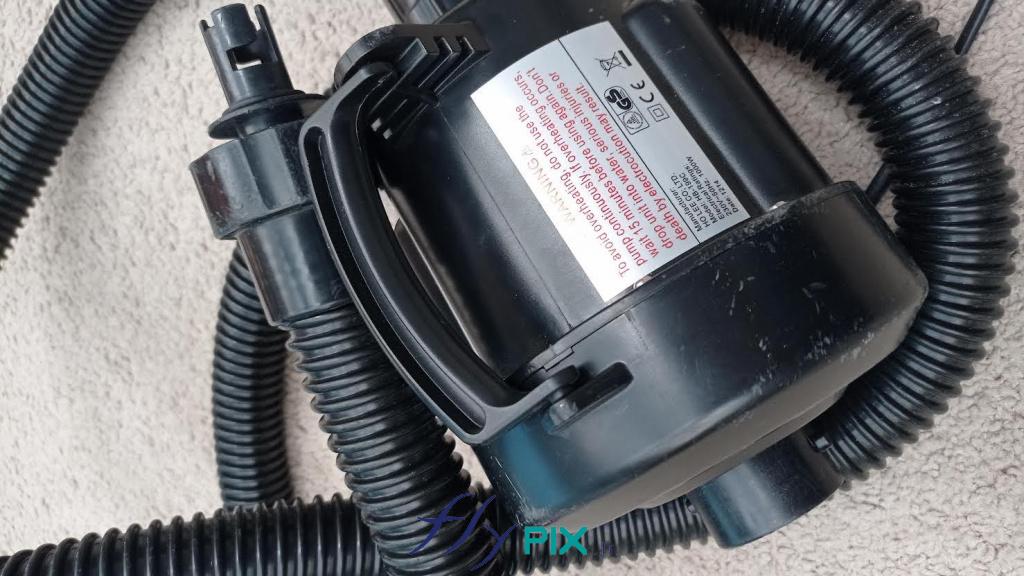

Electric pump for inflating the inflatable construction tent

Example of an electric pump usable for inflating captive air tents, via a non-return valve. – All rights reserved, copyrights FLYPIX.

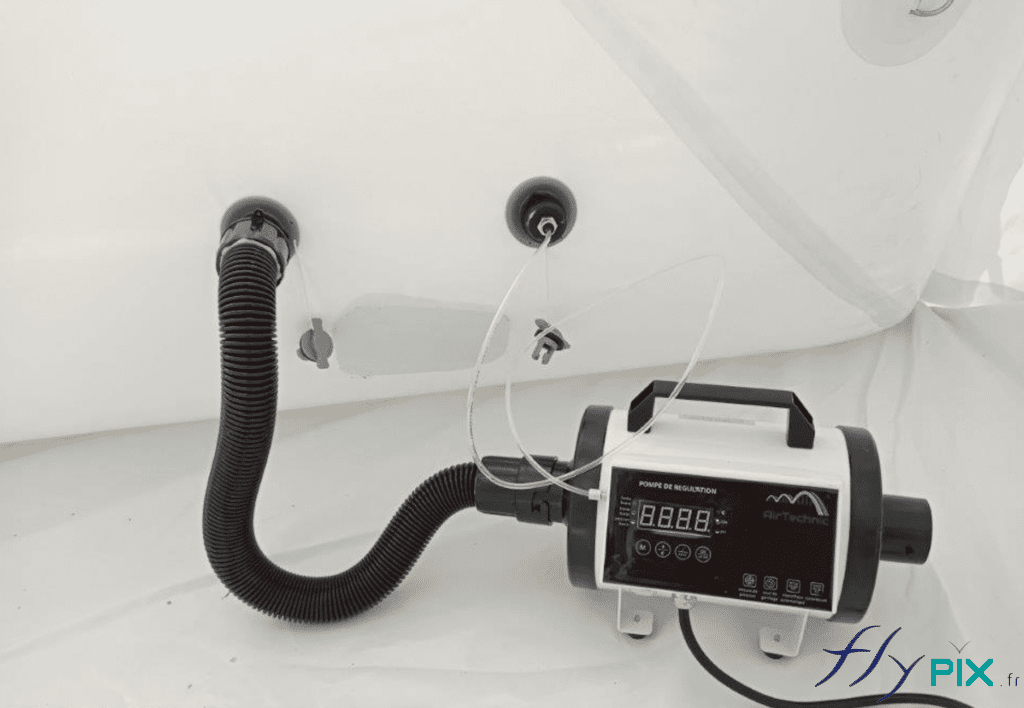

Pressure regulator to stabilize the air pressure in the inflatable shelter’s frame tubes

We manufacture custom-made products in France, according to the needs and specifications of our clients:

• Inflatable shelters,
• Inflatable cabins,
• Inflatable tents,
• Inflatable hangars,
• Inflatable playgrounds.

Types of construction or industrial sites:

• Masonry,
• Application of plaster or resins,
• Roads and highways,
• Floor coverings,
• Renovations and restorations,
• Earthworks,
• Demolitions,
• Soil remediation,
• Excavations,
• Painting, welding,
• Work on swimming pools, basins,
• Storage of equipment or materials.

We deliver  inflatable shelters and tents for construction and public works projects  in the following territories:

• Metropolitan France ,
• French Overseas Departments and Territories (DOM TOM) :  Martinique, Guadeloupe, Réunion, Mayotte, New Caledonia, French Guiana,…
• Europe : Luxembourg, Belgium, Switzerland, Monaco,…
• Francophone Africa :  Morocco, Tunisia, Algeria, Senegal, Ivory Coast, Madagascar,…
• Worldwide delivery available upon request.

Why don’t we offer  OXFORD fabric  for our shelters?

• We do not offer  inflatable tents  made of  Oxford canvas, as  the quality of this material is insufficient and unsuitable for the needs required on swimming pool construction sites.
• Under these working and construction conditions,  Oxford fabric is  too fragile and offers no resistance to abrasion and repeated use. That’s why our tents for pool installers are always made with 0.45 mm and 0.60 mm PVC casing.
• Too many problems caused by this  Oxford fabric design  (tears, abrasions, etc.). Many repairs and returns for after-sales service.
