UASC/Civil Security Ambulance Unit: L = 4 × l = 3 m, S = 12 m2, captive air, first aid inflatable tent

For the UASC/Association Unité Ambulance de Sécurité Civile , based in Nice, in the Alpes-Maritimes department on the French Riviera, we recently designed and manufactured a PMA (Advanced Medical Post) inflatable tent for a mobile first aid and emergency care unit.

This inflatable structure, inflated with an electric pump, is air-locked, i.e., inflated with an electric pump; the material used is 0.6 mm single-skin PVC.

We provide:

• 3 Descenders, Paris Airport, Airbus, Alstom, Andra, French Army, Bouygues Bâtiment,  Celeste  Airships, Chantiers Modernes, CNES, CNRS, Colas, Colas Rail, French Red Cross, Red Crescent, EADS, EDF, Eurovia, Fayat, Flexi France, National Gendarmerie,  Bolloré Group ,  IrvinGQ  France SAS, French Navy, Marti Group, Ministry of Defence, Ministry of the Armed Forces, NJ Décobéton, Nexter, Noé Jacquier, Nouvetra, OGB Lux, Civil Protection, RATP, Razel-Bec, Sade, SAMU, SDIS,  Sefrim  Environnement, SMUR, SNCF, Sol Environnement, Technip, Thales, Valgo, Vinci, Wabtec…

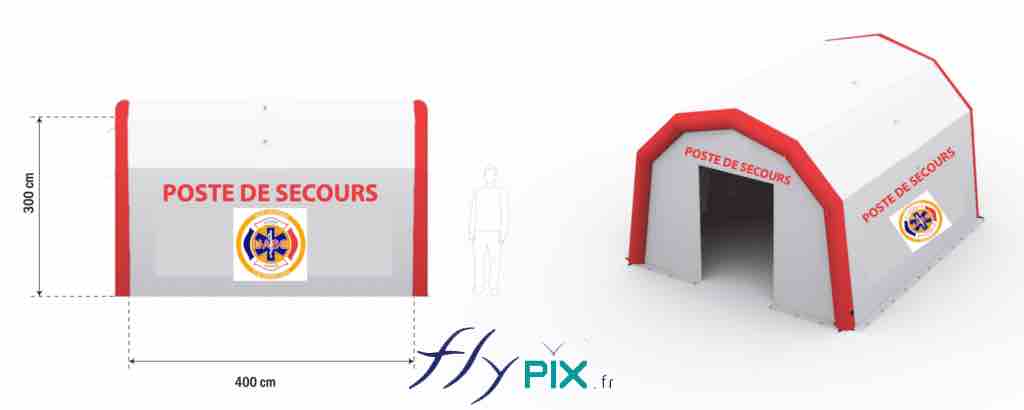

Here is the final proof (BAT – bon à tirer) of the inflatable medical tent (Advanced Medical Post), custom-made by us at the request of the UASC/Association Unité Ambulance de Sécurité Civile, in Nice, in southeastern France. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.

PMA tent,  French Red Cross model , 4 x 3 m, airtight, 0.6 mm single-layer PVC envelope

Technical specifications:

• Advanced Medical Post (PMA) tent,
• Inflatable structure with captive air, inflated with an electric pump.
• Shelter entirely made of 0.6 mm PVC, with watertight welded seams.
• Shape with 5 or 6 beveled sides,
• Walls and roof: 0.6 mm PVC envelope, factory Pantone color,
• Structural frame strips: 0.6 mm PVC casing, factory Pantone color chart, 0.60 m diameter,
• Ground sheet welded to the tent, made of washable PVC.
• Metal fixing rings,
• Guy wire kit: Lancelin Pro marine rope,
• Mudguard on the floor,
• Repair kit,
• Storage bag
• Tent without windows or weights.
• Hot/cold air sleeves and electrical cable and conduit sleeves,
• 1 wide gable door, Velcro closures, solid color, no window,
• 4 custom printed markings (on Velcro banners or printed on a white background),
• 1-year manufacturer’s warranty + after-sales service + telephone support
• Custom-made in France by us in our workshops.
• LNE France fire safety standard type M2,
• BAT in graphic design studio
• Power supply: EDF, 220V on site (please provide).
• Wind resistance: 70 km/h.

PMA tent model 4 x 3 m – 12 m2 (internal dimensions), sealed air, 0.6mm PVC:

• Total kit weight: approximately 80 kg – Dimensions folded in storage bag: 100 x 90 cm.

Custom markings:

• marking “  FIRST AID POSTE  ” in red on the front of the PMA, just above the entrance as well as on both lateral sides of the PMA above the logo.

For the UASC/Civil Security Ambulance Unit Association, based in Nice, in the Alpes-Maritimes department on the French Riviera, we recently designed and manufactured a PMA (Advanced Medical Post) tent for a mobile first aid and emergency care unit. – All rights reserved, reproduction prohibited. Copyright FlyPix / Vivien LAÏLLE.
