Tents, shelters, large inflatables sheds, custom-made

Outpost medical inflatables tents, field hospitals, military tents, inflatables for military and the army,
decoys of military dummy vehicles, inflatables mobiles PC solutions for Defense and Security

Made in France bespoke products - Contact : Vivien Laïlle - Phone: +33 (0)6 95 34 35 45 - Mail: contact@flypix.fr

Civil Protection, French Army : inflatable first aid tents, field hospitals. This is a first aid medical shelter measuring 10 x 6 m, with captive air, inflated with an electric pump and equipped with a pressure regulator.

Civil Protection, French Army : inflatable first aid tents, field hospitals

We are pleased to announce that we have manufactured an advanced medical post tent (PMA tent) for the French Army (Niger Civil Protection) for the French Embassy in Niger, Africa.
This is a first aid medical shelter measuring 10 x 6 m, with captive air, inflated with an electric pump and equipped with a pressure regulator.
This first aid tent was custom-made in France by our team of seasoned and experienced engineers and technicians.
The batch included 20 foldable PMA tents (6 x 3 m), 50 adult folding spike beds, and one large inflatable PMA tent with captive air.
Captive Air First Aid Tent (Nigerian Civil Protection Model) Useful interior dimensions L 10 m W 6 m x H 2.75 m, 0.6 mm single-skin PVC envelope
Captive Air First Aid Tent (Nigerian Civil Protection Model) Useful interior dimensions L 10 m W 6 m x H 2.75 m, 0.6 mm single-skin PVC envelope. These dimensions are not standard, as we custom manufacture first aid tents of this type, we have the possibility of offering other dimensions depending on your needs in terms of surface area, volume and capacity.

Another example of first aid inflatable mobile unit for first aid : U.M.P.S

Unité Mobile de Premiers Secours (U.M.P.S) / Mobile first aid unit : inflatable first aid shelters, field hospitals
Officers and soldiers from the Civil Protection of Niger (French Army) are presenting and explaining to local officials and officers of the Niger army the benefits of the medical shelters we have delivered.
Officers and soldiers from the Civil Protection of Niger (French Army) are presenting and explaining to local officials and officers of the Niger army the benefits of the medical shelters we have delivered.
We delivered to the Civil Protection of Niger (French Army): 20 folding medical tents measuring 6 x 3 m and 1 inflatable PMA tent measuring 10 x 6 m, as well as 50 cots. The Civil Protection of Niger (French Army), through the local French Embassy, ​​works in collaboration with the Niger military in Africa.
We delivered to the Civil Protection of Niger (French Army): 20 folding medical tents measuring 6 x 3 m and 1 inflatable PMA tent measuring 10 x 6 m, as well as 50 cots. The Civil Protection of Niger (French Army), through the local French Embassy, ​​works in collaboration with the Niger military in Africa.
Delivery of first aid tents to the Civil Protection of Niger (French Army).
Delivery of first aid tents to the Civil Protection of Niger (French Army).
Delivery of first aid tents to the Civil Protection of Niger (French Army).
Delivery of first aid tents to the Civil Protection of Niger (French Army).
The foldable and inflatable PMA tents were imported into Africa by military aircraft and then unloaded from a truck.
The foldable and inflatable PMA tents were imported into Africa by military aircraft and then unloaded from a truck.

Below: a video presentation of the inflation of the inflatable PMA tent, captive air, inflated with an electric pump and equipped with a pressure regulator.

Our strengths:

  • Made in France, made in France,
  • Our advice,
  • Quality of implementation and finishing,
  • Our expertise,
  • Manufacturer’s warranty + after-sales service,
  • After-sales service and services provided.

We supply PMA tents to: The French Red Cross, the Belgian Red Cross, the Moroccan Red Crescent, the Algerian Red Crescent, the UMPS, SDIS, SMUR, etc.

1-YEAR MANUFACTURER’S WARRANTY + AFTER-SALES SERVICE

It should be noted that the PMA tent is also:

  • A high-quality, reusable, and robust product.
  • It is equipped with a canopy, windows, shutters, and removable marking banners.
  • It comes with a manufacturer’s warranty, after-sales service,
  • and also meets the LNE France M2 anti-impact standards for PVC enclosures.
3D view of the proof of the PMA tent (advanced medical post tent), for the Civil Protection of Niger, for the French Embassy in Niger.
3D view of the proof of the PMA tent (advanced medical post tent), for the Civil Protection of Niger, for the French Embassy in Niger. This document was validated by the client for the manufacture of the inflatable first aid shelter. As can be seen here, it is a tent with cut sides, large gable doors, air vents, windows and a washable PVC ground sheet.
The medical shelter has removable markings in color-printed banners attached by Velcro strips
The medical shelter has removable markings in color-printed banners attached by Velcro strips
Civil Protection, French Army : inflatable first aid tents, field hospitals
Civil Protection, French Army : inflatable first aid tents, field hospitals
Views of the airtight captive frame tubes of the medical tent, this technical solution provides the inflatable shelter with very high physical resistance to wind, bad weather (snow, rain), and mechanical constraints.
Views of the airtight captive frame tubes of the medical tent, this technical solution provides the inflatable shelter with very high physical resistance to wind, bad weather (snow, rain), and mechanical constraints.
Additional 3D views of the proof as approved by the sponsor. The medical shelter features removable, color-printed banner markings secured with Velcro strips.
Additional 3D views of the proof as approved by the sponsor. The medical shelter features removable, color-printed banner markings secured with Velcro strips.

First Aid Station Inflatable Captive Air Tent, L = 10 m, W = 6 m, H = 2.75 m, 0.6 mm PVC + pump + pressure regulator

Technical specifications:

  • Airtight structure inflated with air using a 220V electric pump,
  • Shape: 5-sided or tunnel,
  • Pump + pressure regulator,
  • Roof and wall covering: all 0.6 mm PVC, single wall,
  • Framework: 0.6 mm PVC frames, D = 0.90 m tubes, single wall,
  • 0.6 mm PVC covering color: see Pantone color chart for attached colors,
  • Metal fixing rings + ropes for Lancelin guy lines,
  • Fireproof standards (type M2), CE standards,
  • Non-return valve, pressure relief valves,
  • Hot/cold air sleeves (air conditioning not included),
  • Cable and electrical conduit sleeves,
  • 1 washable, welded PVC groundsheet,
  • 1 Single-door access canopy,
  • 2 wide gable doors (dimensions to be determined),
  • 6 transparent CRYSTAL windows + 8 removable Velcro flaps,
  • Print ready in the graphic design studio,
  • Repair kit,
  • Storage bag,
  • 1-year manufacturer’s warranty + after-sales service,
  • Custom-made in France by us,
  • 220V power supply required on site.
  • 3 removable Velcro markings: Logo or text printing in color. Velcro straps attached.

Additional information:

  • Estimated unit weight per tent: 200 kg,
  • Folded unit volume: 1.4 m x 1.2 m,
  • Average manufacturing time: 15 days + delivery (our tents are pressure tested before each shipment).
In this photo, we can see: the wide open gable door, the removable printed marking banner attached with Velcro, large windows (with mosquito nets and shutters), and at the bottom right, the pressure regulator pump. The pressure regulator ensures that the pressure is always the same inside the frame tubes, which are also equipped with pressure relief valves.
In this photo, we can see: the wide open gable door, the removable printed marking banner attached with Velcro, large windows (with mosquito nets and shutters), and at the bottom right, the pressure regulator pump. The pressure regulator ensures that the pressure is always the same inside the frame tubes, which are also equipped with pressure relief valves.
In this photo we see a large gable door, with a large printed banner attached by Velcro above it, and air sleeves and electrical conduits and wires at the bottom right and left. Inside the PMA tent we can see the windows (closed here) and also the washable PVC groundsheet.
In this photo we see a large gable door, with a large printed banner attached by Velcro above it, and air sleeves and electrical conduits and wires at the bottom right and left. Inside the PMA tent we can see the windows (closed here) and also the washable PVC groundsheet.
The removable marking banners are printed in full print, with the logo and inscriptions requested by the sponsor. The wide gable door is designed to the right dimensions for easy passage of patients and medical staff, as well as first aid equipment. The washable PVC floor tarpaulin insulates the interior from dust and dirt coming from the ground.
The removable marking banners are printed in full print, with the logo and inscriptions requested by the sponsor. The wide gable door is designed to the right dimensions for easy passage of patients and medical staff, as well as first aid equipment. The washable PVC floor tarpaulin insulates the interior from dust and dirt coming from the ground.
Here we see the exit door of the PMA (Advanced Medical Post) tent. This tent, made of a single-skin 0.6 mm PVC envelope, is equipped with airtight captive frame tubes and a single-skin envelope wall/roof. It is inflated using a pump and a pressure regulator. The guy lines are provided by Lancelin marine pro guy ropes. The tent is made of materials that meet the LNE France type M2 fire standards.
Here we see the exit door of the PMA (Advanced Medical Post) tent. This tent, made of a single-skin 0.6 mm PVC envelope, is equipped with airtight captive frame tubes and a single-skin envelope wall/roof. It is inflated using a pump and a pressure regulator. The guy lines are provided by Lancelin marine pro guy ropes. The tent is made of materials that meet the LNE France type M2 fire standards.
This 10 x 6 m medical shelter has an entrance with a canopy to protect from rain and bad weather. Emergency vehicles can enter under the canopy to transfer patients or injured people through the main entrance. Our medical tents are ergonomic and can be easily deployed by a first aid team (here, soldiers from the French Civil Protection Army in Niger).
This 10 x 6 m medical shelter has an entrance with a canopy to protect from rain and bad weather. Emergency vehicles can enter under the canopy to transfer patients or injured people through the main entrance. Our medical tents are ergonomic and can be easily deployed by a first aid team (here, soldiers from the French Civil Protection Army in Niger).

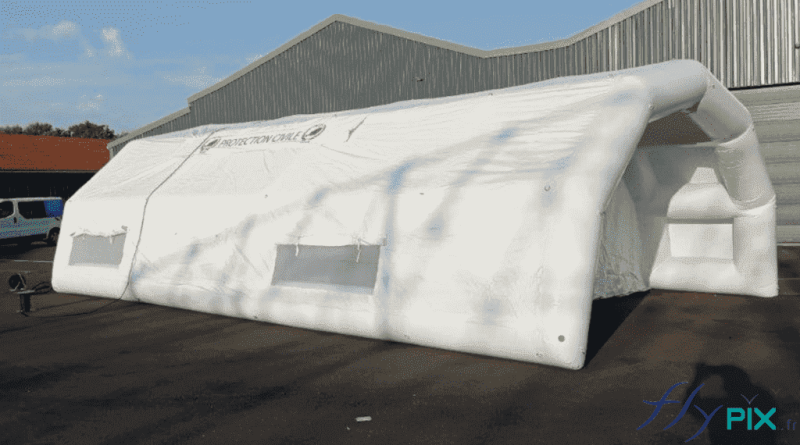

A general view of the 6 x 10 m inflatable medical tent. This is a very high-quality product, custom-made by us in France.
A general view of the 6 x 10 m inflatable medical tent. This is a very high-quality product, custom-made by us in France.
We manufacture inflatable medical shelters designed to meet the needs of doctors and medical staff. They feature wide gable doors, personalized branding with removable Velcro banners, windows with mosquito nets and removable Velcro shutters, and a washable PVC floor cover inside for good hygiene.
We manufacture inflatable medical shelters designed to meet the needs of doctors and medical staff. They feature wide gable doors, personalized branding with removable Velcro banners, windows with mosquito nets and removable Velcro shutters, and a washable PVC floor cover inside for good hygiene.

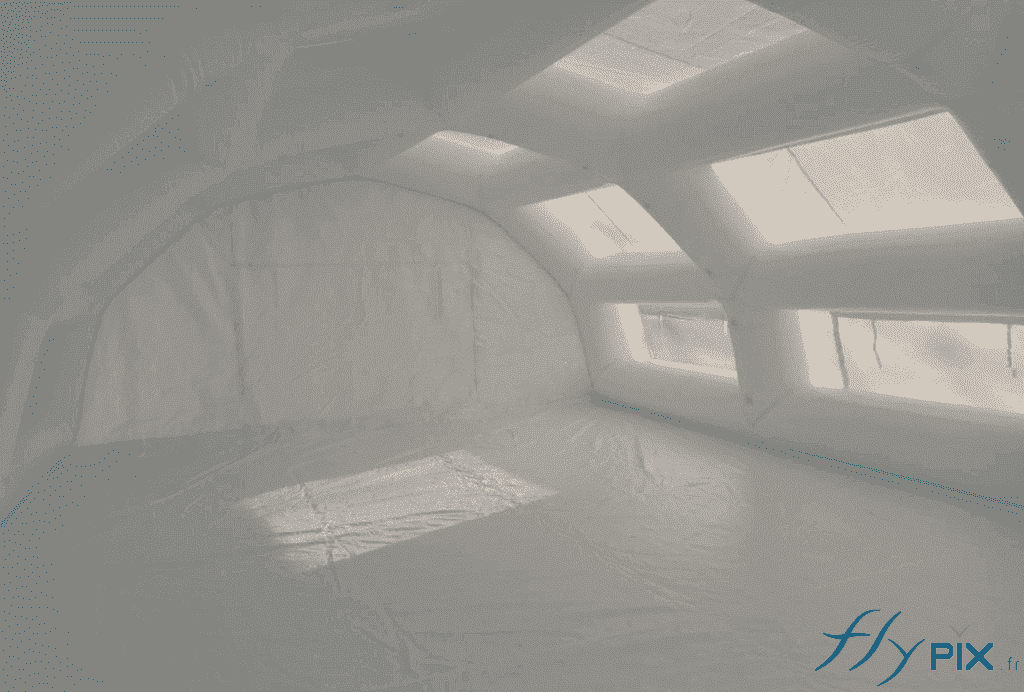

Interior view of the PMA (Advanced Medical Post) tent: the whole area is very bright thanks to the 0.6 mm white PVC envelope. There is a washable PVC floor tarpaulin that ensures hygiene and protection against dirt and dust from the ground. Large windows, equipped with mosquito nets and shutters, allow the interior to be illuminated with natural sunlight. Ideal conditions for the nursing staff.
Interior view of the PMA (Advanced Medical Post) tent: the whole area is very bright thanks to the 0.6 mm white PVC envelope. There is a washable PVC floor tarpaulin that ensures hygiene and protection against dirt and dust from the ground. Large windows, equipped with mosquito nets and shutters, allow the interior to be illuminated with natural sunlight. Ideal conditions for the nursing staff.
Here we see large windows with mosquito nets and shutters, as well as airtight captive frame sausages in 0.6 mm single-skin PVC envelope. The white envelope lets in diffused light, which is suitable for examining patients and sick people during first aid.
Here we see large windows with mosquito nets and shutters, as well as airtight captive frame sausages in 0.6 mm single-skin PVC envelope. The white envelope lets in diffused light, which is suitable for examining patients and sick people during first aid.
TEDIS-tent-PMA-captive-air-L=10mxl=6mxH=275m-PVC06mm-single-skin-ground-tarpaulin-pump-6-ballasts-pressure-regulator-13
TEDIS-tent-PMA-captive-air-L=10mxl=6mxH=275m-PVC06mm-single-skin-ground-tarpaulin-pump-6-ballasts-pressure-regulator-13
pma-advanced-dmedical-first-aid-station-inflatable-tent-main-access-with-a-large-gable-door-and-a-rain-protection-canopy
PMA (advanced medical post) tent, main access, with a large gable door and a rain protection canopy.
An inflatable medical shelter (first aid station), intended to accommodate the sick or disaster victims in Africa, in Niger.
An inflatable medical shelter (first aid station), intended to accommodate the sick or disaster victims in Africa, in Niger. This medical tent was custom-made, an advanced medical post shelter measuring 10×6 m, with captive air, inflated with an electric pump. This first aid station was created for the Niger Civil Protection, for the French Army, via the local French Embassy.
Niger's Civil Protection is testing an inflatable PMA tent, captive air, inflated with an electric pump.
Niger’s Civil Protection is testing an inflatable PMA tent, captive air, inflated with an electric pump.
The inflatable PMA tent features a washable PVC floor covering, large doors, and windows with mosquito nets. Here you can see foldable beds for adults.
The inflatable PMA tent features a washable PVC floor covering, large doors, and windows with mosquito nets. Here you can see foldable beds for adults.
Above the door we can see large removable marking banners, attached with Velcro.
Above the door we can see large removable marking banners, attached with Velcro.

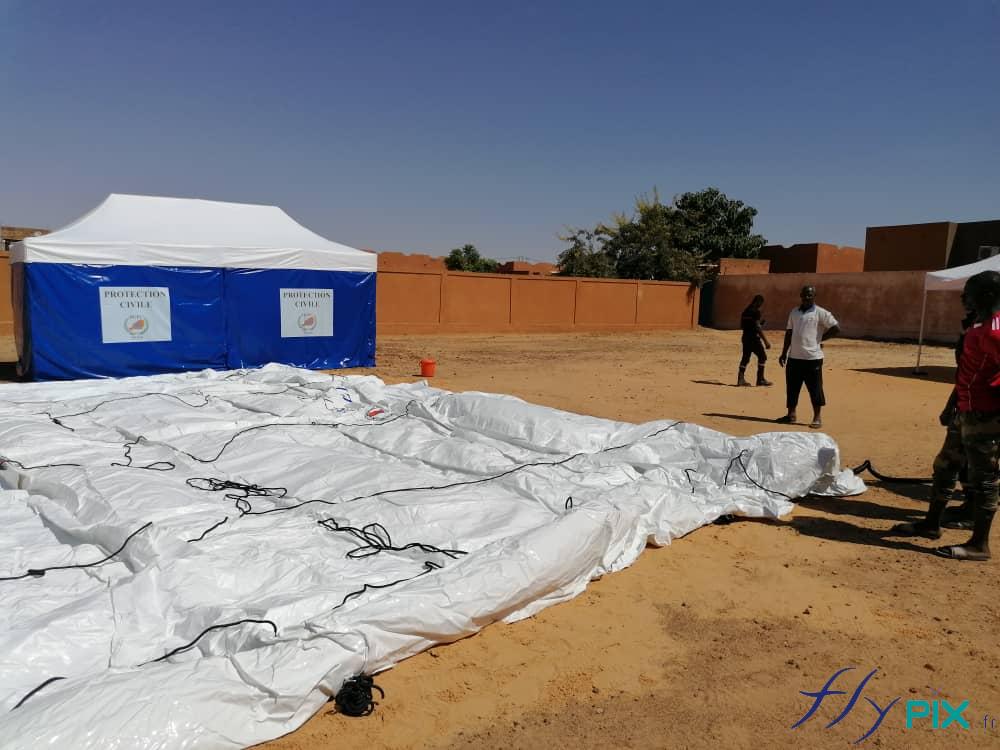

Technicians are placing the inflatable PMA tent on the ground, which will then be inflated for a pressure test.
Technicians are placing the inflatable PMA tent on the ground, which will then be inflated for a pressure test.
A captive air forward medical post tent, fully unfolded on the ground, which will be inflated for a pressure test phase.
A captive air forward medical post tent, fully unfolded on the ground, which will be inflated for a pressure test phase.
ballast-bags-to-be-filled-with-sand-custom-made-by-us for-ballasting-inflatable-shelters-tents-and-sheds-2
Ballast bags to be filled with sand, custom-made by us for ballasting inflatable shelters, tents and sheds
ballast-bags-to-be-filled-with-sand-custom-made-by-us for-ballasting-inflatable-shelters-tents-and-sheds-1
Ballast bags to be filled with sand, custom-made by us for ballasting inflatable shelters, tents and sheds
Example of 220V electric pump for inflating inflatable first aid tent in PVC envelope
Example of 220V electric pump for inflating inflatable first aid tent in PVC envelope
Electric pressure regulator for regulating air pressure in the airtight captive air frame tubes of the inflatable first aid tent.
Electric pressure regulator for regulating air pressure in the airtight captive air frame tubes of the inflatable first aid tent.
Non-return valve and pressure relief valve for airtight captive frame tubes of military inflatable first aid tent.
Non-return valve and pressure relief valve for airtight captive frame tubes of military inflatable first aid tent.
Non-return valve and pressure relief valve for airtight captive frame tubes of military inflatable first aid tent.
Non-return valve and pressure relief valve for airtight captive frame tubes of military inflatable first aid tent.
Inflatable military first aid tent protect flycases.
Inflatable military first aid tent protect flycases.
Inflatable military first aid tent protect flycase.
Inflatable military first aid tent protect flycase.

Another example of the same type: Inflatable medical tent for the Jean Leclaire Hospital Center in Sarlat

View from the main door of the inflatable medical tent: wide gable door, removable marking banner, access canopy for protection from the rain. Right, below: non-return inflation valve, pressure relief valves. Rings and metal eyelets for attachment to the frame tubes.
View from the main door of the inflatable medical tent: wide gable door, removable marking banner, access canopy for protection from the rain. Right, below: non-return inflation valve, pressure relief valves. Rings and metal eyelets for attachment to the frame tubes.
PMA tent frame and wall sausages, in 0.6 mm single-skin PVC envelope, with metal fixing rings and eyelets for Lancelin marine pro rope guy lines.
PMA tent frame and wall sausages, in 0.6 mm single-skin PVC envelope, with metal fixing rings and eyelets for Lancelin marine pro rope guy lines.
Washable PVC ground sheet inside the inflatable PMA tent for the greatest possible cleanliness and hygiene.
Washable PVC ground sheet inside the inflatable PMA tent for the greatest possible cleanliness and hygiene.
Interior view of a medical shelter, with useful external dimensions L = 10 m x W = 4 m; an inflatable structure of the captive air type, in a single-skin 0.6 mm white PVC envelope.
Interior view of a medical shelter, with useful external dimensions L = 10 m x W = 4 m; an inflatable structure of the captive air type, in a single-skin 0.6 mm white PVC envelope.
Interior view of the inflatable first aid tent: washable PVC groundsheet, side door on the right, secondary door in the center. Frame tubes in 0.6 mm single-skin PVC envelope, captive air.
Interior view of the inflatable first aid tent: washable PVC groundsheet, side door on the right, secondary door in the center. Frame tubes in 0.6 mm single-skin PVC envelope, captive air.
